Installing Suction Fan For Seat Backrest

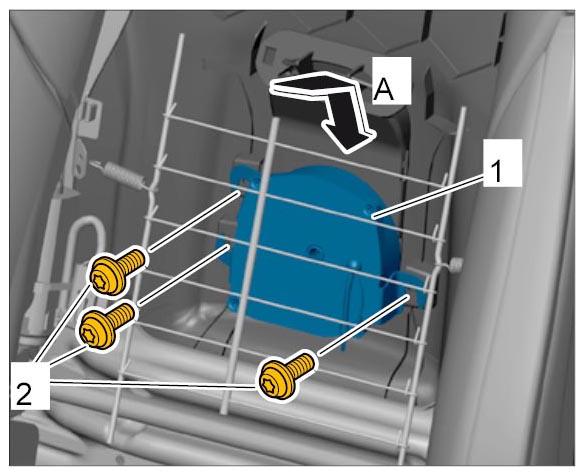

- Guide in the suction fan for the backrest surface -1-
from above -A-
and secure with the three fastening screws -2-
.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

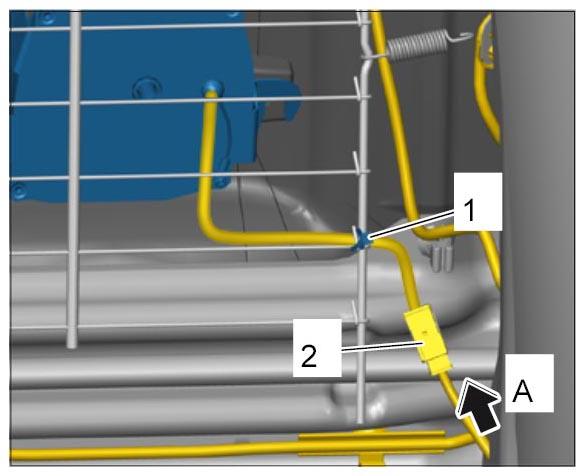

- Connect electric plug connection -2-
on the suction fan for the backrest surface -A-
until the connector engages securely. Wrap fabric tape around the electric plug connection for the suction fan for the backrest surface -2-
and secure it to the base carrier with a tie-wrap -1-
.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
- Perform a function test.
- For seats with lumbar support:
Secure lumbar support. Check that the lines are routed correctly. → INSTALLING LUMBAR SUPPORT
.

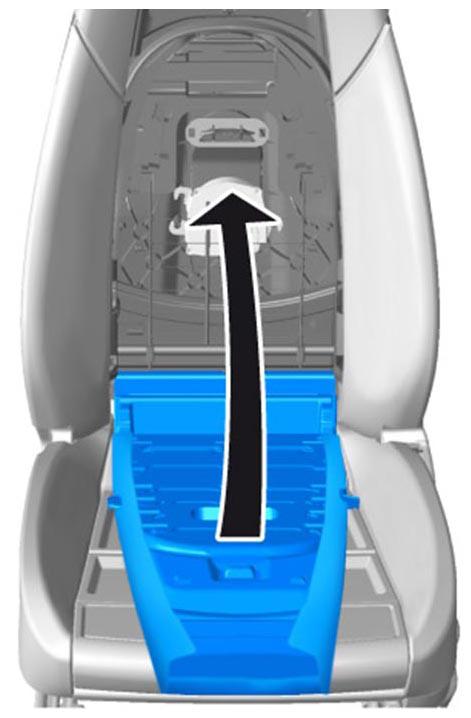

- Fold up cover with cushion -arrow-
.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

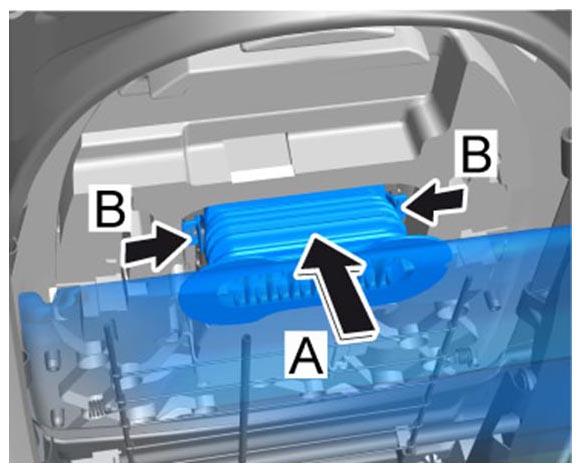

- 5.1. Only for cover with seat ventilation:
Press air-guide cowl against backrest -arrow A-
and clip to backrest -arrows B-
.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
- Secure front cover.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

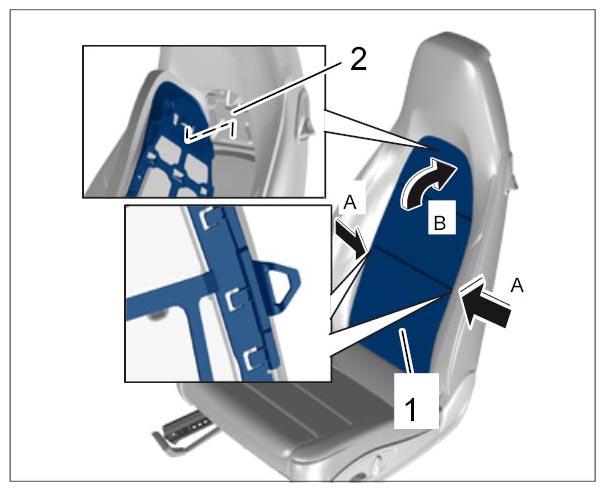

- 6.1. Engage cover -1-
at the top in the backrest frame -2-
(-arrow B-
).
- 6.2. Press in cover -1-
in the middle -arrows A-
until the locking lugs at the side engage.
