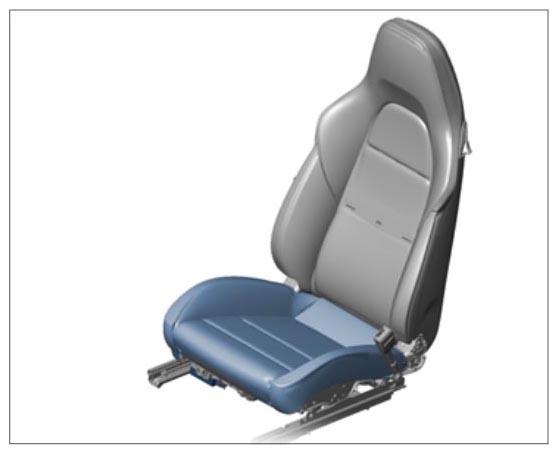

Removing Cover For Front Seat
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

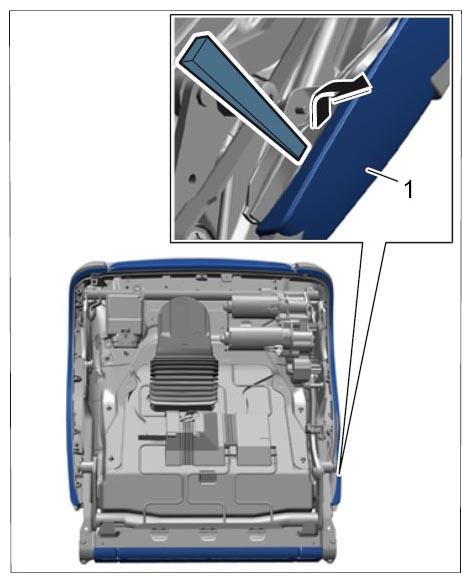

- Carefully press rear cover piping -1-
out of the seat frame using a suitable tool -arrows-
.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

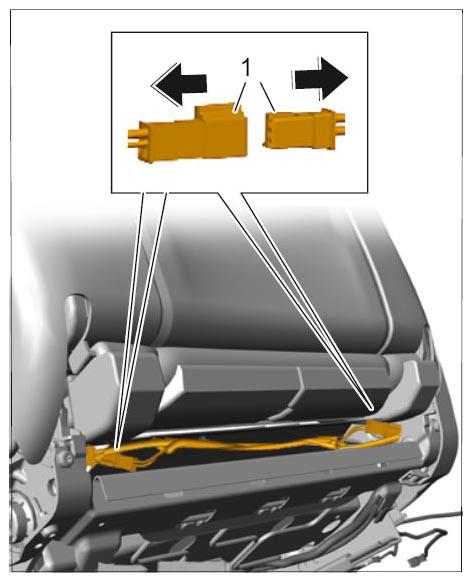

- Disconnect electric plug connections for heated seats -1-
(-arrows-
).
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
- Loosen cover piping -1-
all the way around using a suitable tool -arrow-
.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

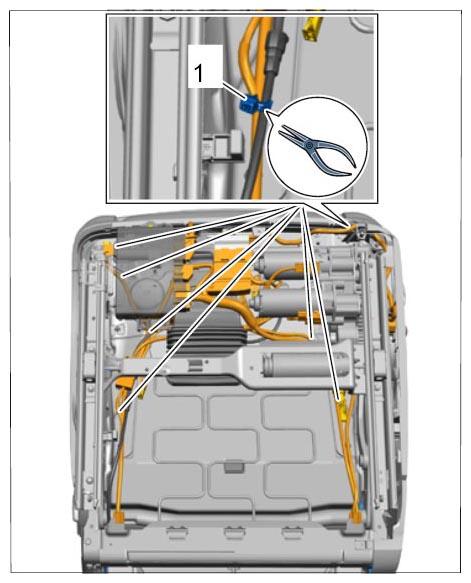

- Unclip the fixing clips -1-
using a suitable tool -arrow-
.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

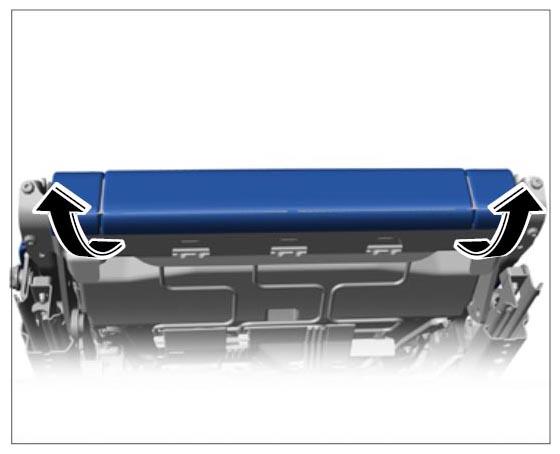

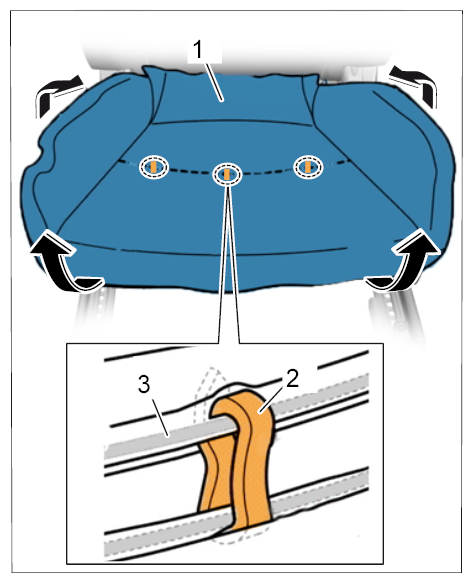

- Fold cover -1-
up slightly -arrows-
and loosen the front cushion clips -2-
from the integrated metal strut -3-
.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

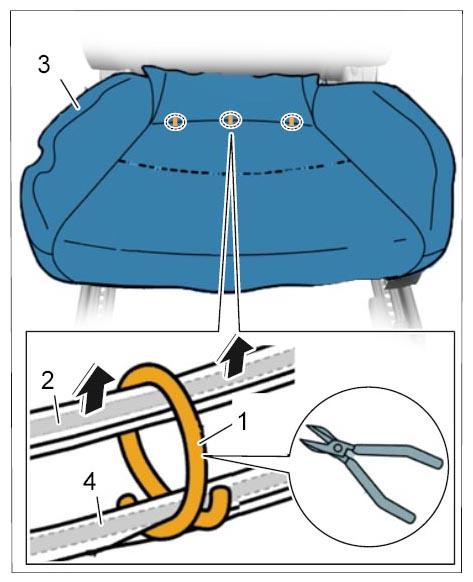

- Cut cushion clips -1-
at the rear on the integrated metal strut -2-
using side cutters.
- Remove cover -3-
from the padding -4-
(-arrows-
).
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
