Removing Suction Fan For Seat Surface

Fig 1: Identifying Seat Suction Fan Installation Position

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

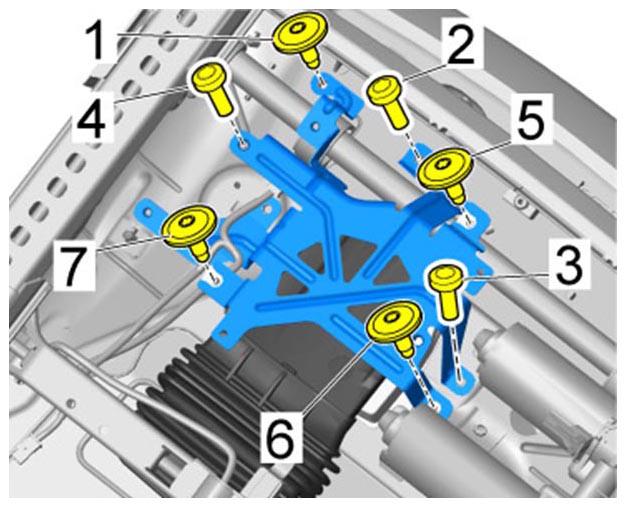

1. Remove fastening screws for suction fan.
   1. 1.1. Remove fastening screws -2, 3, 4-  for suction fan holder.
   2. 1.2. Remove fastening screws -5, 6, 7-  for the suction fan from the holder.
   3. 1.3. Remove suction fan holder from suction fan for seat surface.
   Fig 2: Removing Suction Fan Fastening Screws
   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

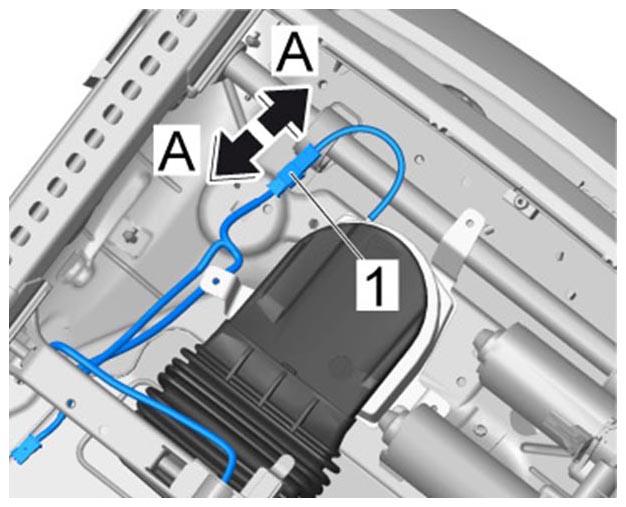

2. Unplug connector for suction fan -1-  (-A-  ).
   Fig 3: Removing Suction Fan Connector

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

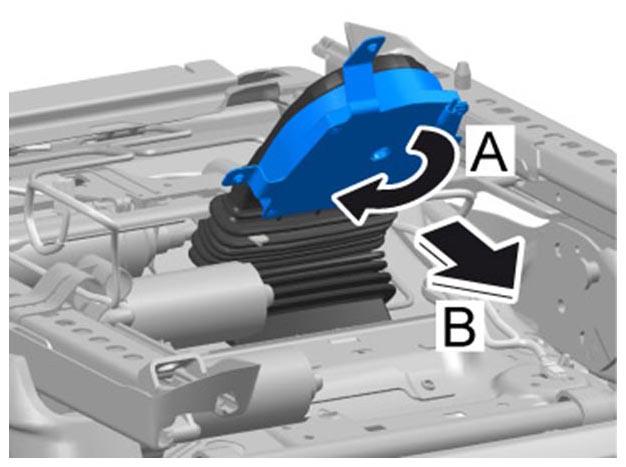

3. Remove suction fan.
   1. 3.1. To release the suction fan, turn it clockwise -A-  and counter at the air duct while doing this.
   2. 3.2. Remove suction fan -B-  .
   Fig 4: Removing Suction Fan
   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
