Component Information

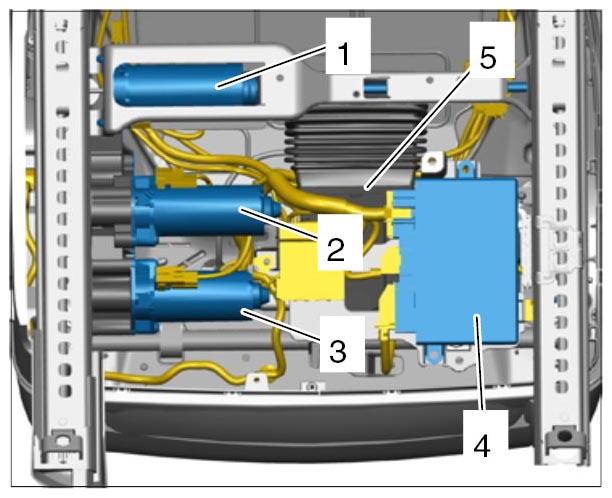

Fig 1: Identifying Seat Adjustment Motor Installation Position
G09998305Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Motor for seat adjustment
  2. Motor for rear vertical adjustment
  3. Motor for front vertical adjustment
  4. Control unit for memory seat adjustment
  5. Suction fan for seat surface
