Removing Switch For Seat Adjustment

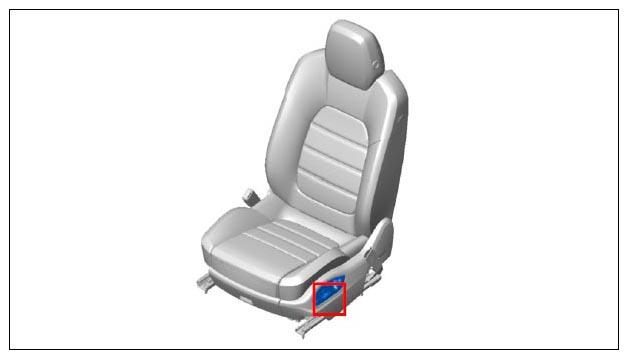

Fig 1: Identifying Seat Adjustment Switch Installation Position
G09998302Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Undo fastening screws -1-  .

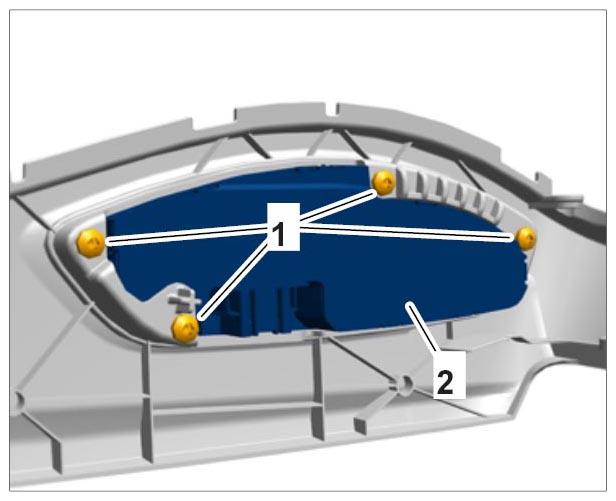

    Fig 2: Removing Seat Adjustment Switch
    G09998303Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Remove the seat adjustment switch -2-  from the trim panel.
