Removing Lumbar Support

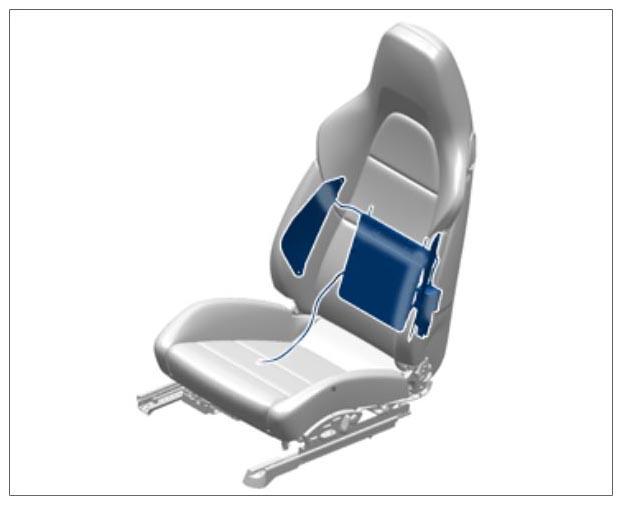

Fig 1: Identifying Lumbar Support Position

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

• Cut air connection lines at a right angle.
• Do not crush air connection lines when cutting them.

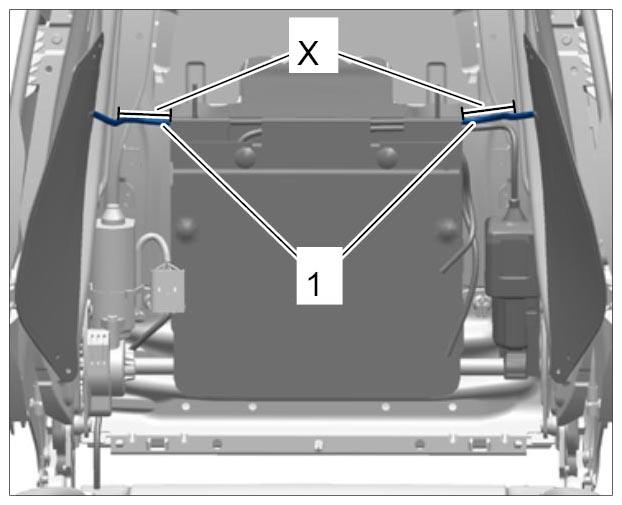

1. Disconnect air connection line -1-  to the lumbar-support motor. -X-  = Length 50 mm  .
   Fig 2: Disconnecting Motor Air Connection Line

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

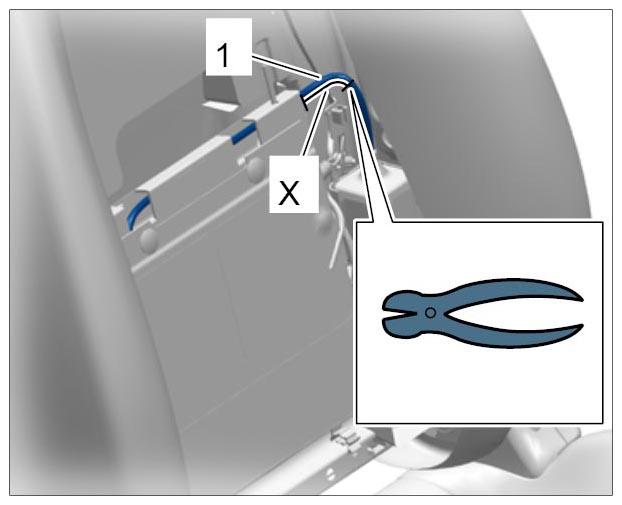

2. Disconnect air connection line -1-  to air cushion for backrest. -X-  = Length 30 mm  .
   Fig 3: Disconnecting Air Cushion Air Connection Line

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
3. Disconnect air connection line to air cushion for seat.
   1. 3.1. Disconnect connection coupling for air connection line -1-  on the underside of the seat -inset-  .
      Fig 4: Disconnecting Air Connection Line To Air Cushion For Seat

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

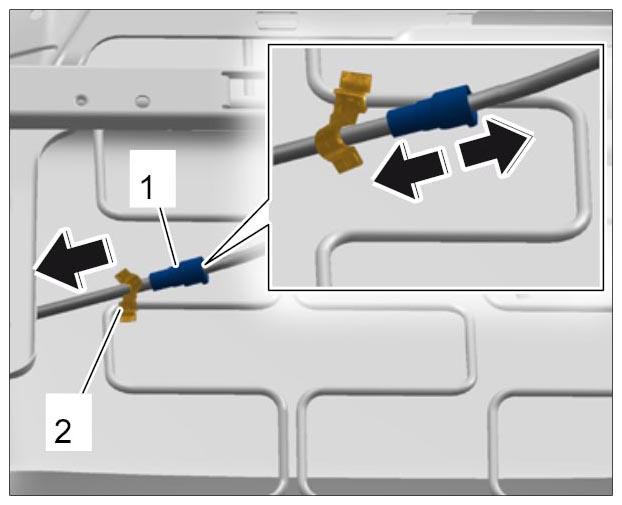

   2. 3.2. Release air connection line from the retaining clip -2-  and feed it out (-arrow-  ).

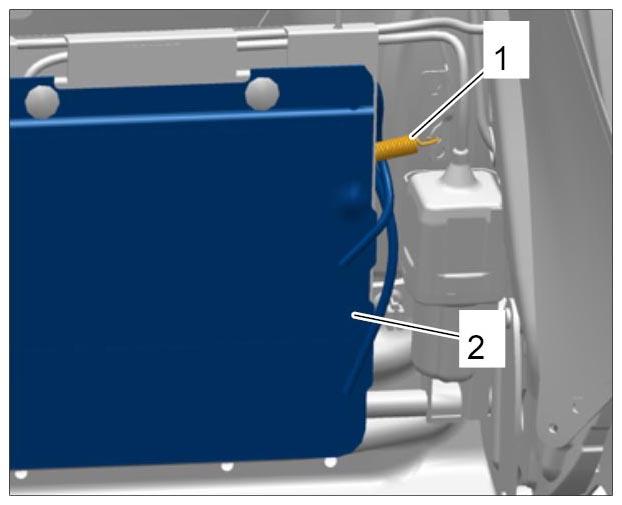

4. Remove retainer springs -1-  for lumbar support -2-  .
   Fig 5: Removing Lumbar Support Retainer Springs

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
5. Disconnect electric plug connection for control valves -1-  (-arrows-  ).
   Fig 6: Disconnecting Electric Plug Connection For Control Valves

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

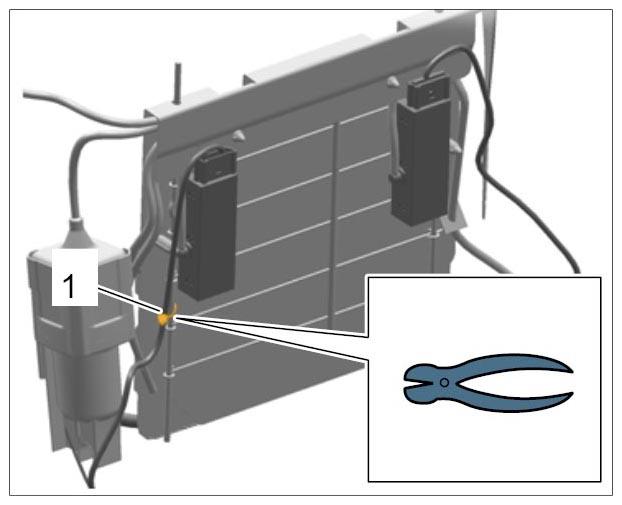

6. Remove tie-wrap -1-  .
   Fig 7: Removing Tie-Wrap

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

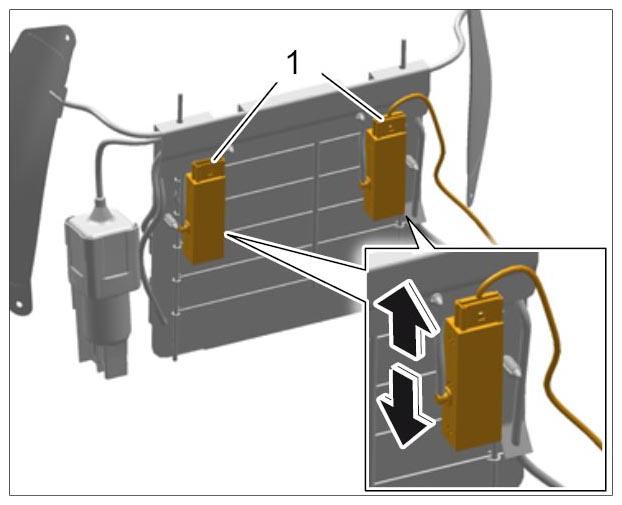

7. Lift lumbar support up (-arrows-  ) and remove it from the bracket -1-  .
   Fig 8: Removing Lumbar Support

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
