Installing Lumbar Support

Information

• Cut air connection lines at a right angle.
• Do not crush air connection lines when cutting them.

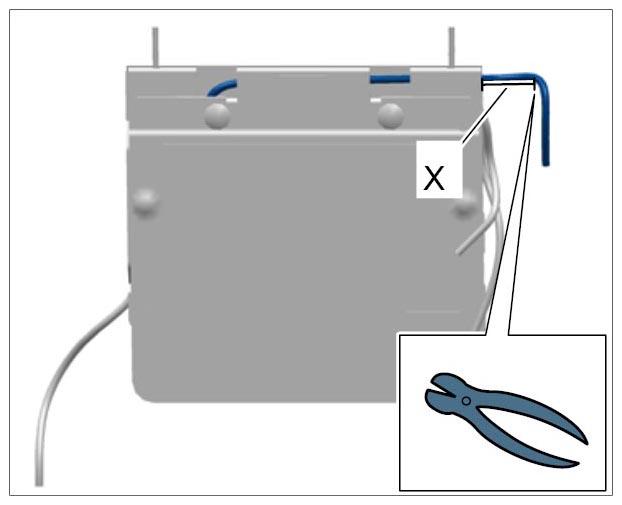

1. Shorten air connection line between the new lumbar support and lumbar-support motor. -X-  = Length 50 mm  .
   Fig 1: Cutting Motor Air Connection Line

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. Shorten air connection line between the new lumbar support and air cushion for backrest. -Y-  = Length 50 mm  .

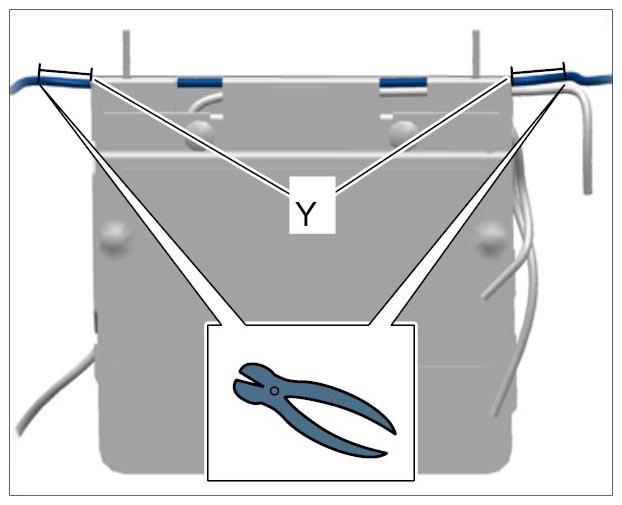

   Fig 2: Cutting Air Cushion Air Connection Line

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
3. Connect air connection line between lumbar support and lumbar-support motor.

   Information

   • Do not heat air connection lines for fitting.
   • Do not use grease for fitting air connection lines.
   • Do not use tools for fitting air connection lines.
   • Do not strain air connection lines during fitting.
   1. 3.1. Fit hose connection -1-  on the end of the air connection line for the lumbar support -2-  .

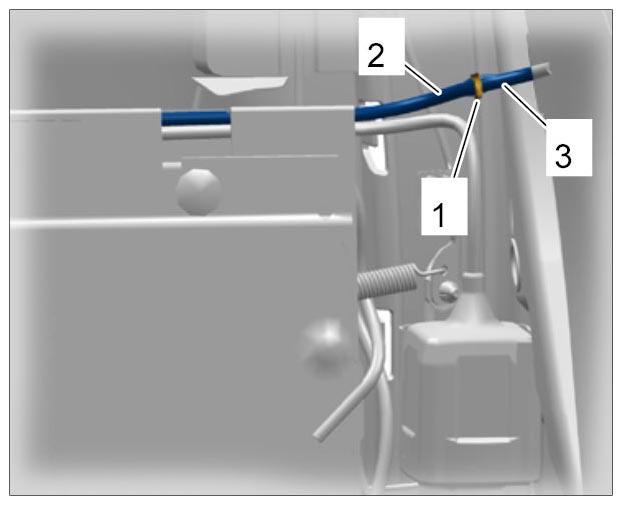

      Fig 3: Connecting Motor Air Connection Line

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
   2. 3.2. Connect attached hose connection -1-  to the air connection line for the lumbar-support motor -3-  .
4. Connect air connection line between lumbar support and air cushion for backrest.

   Information

   • Do not heat air connection lines for fitting.
   • Do not use grease for fitting air connection lines.
   • Do not use tools for fitting air connection lines.
   • Do not strain air connection lines during fitting.
   1. 4.1. Fit hose connection -1-  on the end of the air connection line for the lumbar support.

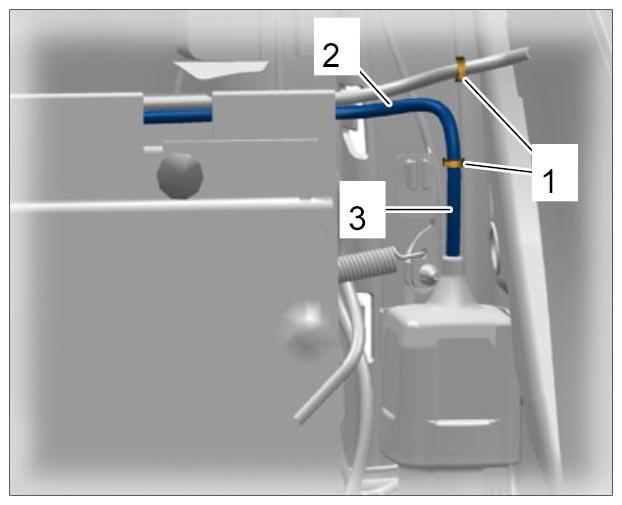

      Fig 4: Connecting Air Cushion Air Connection Line

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
   2. 4.2. Connect attached hose connection -1-  to the air connection line for the air cushion for backrest -3-  .
5. Fit Lumbar support into the brackets -1-  (-arrows-  ).

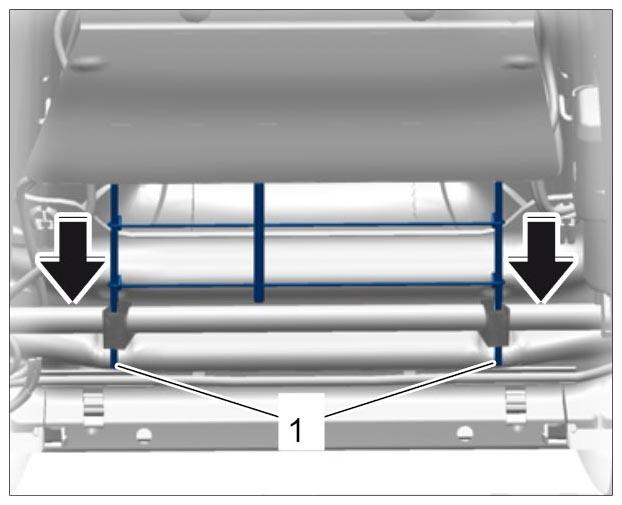

   Fig 5: Installing Lumbar Support

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
6. Connect air connection line to air cushion for seat.
   1. 6.1. Feed air connection line through the seat frame -arrow-  .

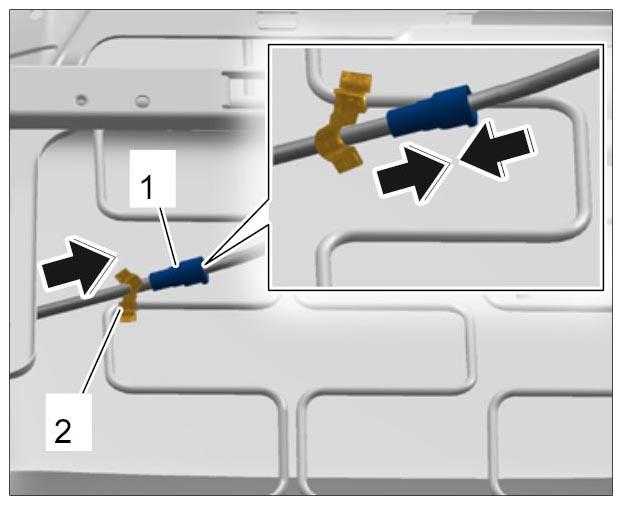

      Fig 6: Connecting Air Connection Line To Air Cushion For Seat

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
   2. 6.2. Fit air connection line into the connection coupling -1-  and secure with the retaining clip -2-  (-inset-  ).
7. Plug in electric plug connection for control valves -1-  (-inset-  ).

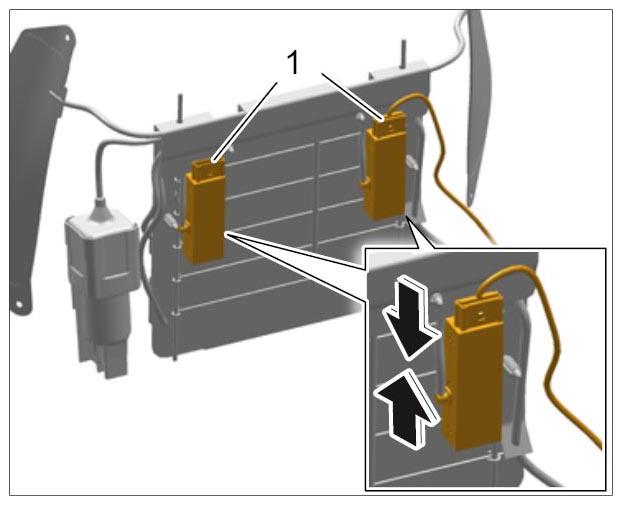

   Fig 7: Plugging In Electric Plug Connection For Control Valves

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
8. Secure cable for control valve to the lumbar support with a tie-wrap -1-  .

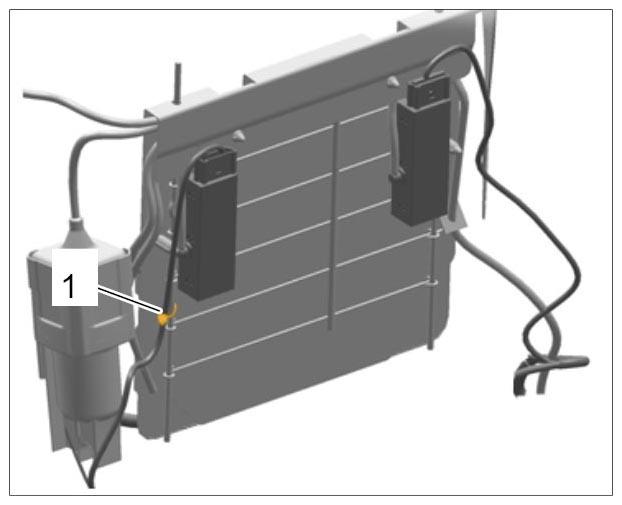

   Fig 8: Securing Control Valve Cable

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
9. Install retainer springs -1-  and secure lumbar support -2-  .

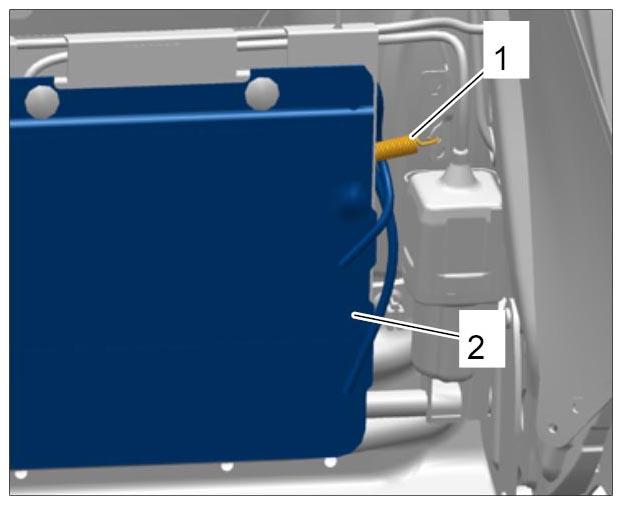

   Fig 9: Installing Lumbar Support With Retainer Springs

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
