Removing Lumbar Support

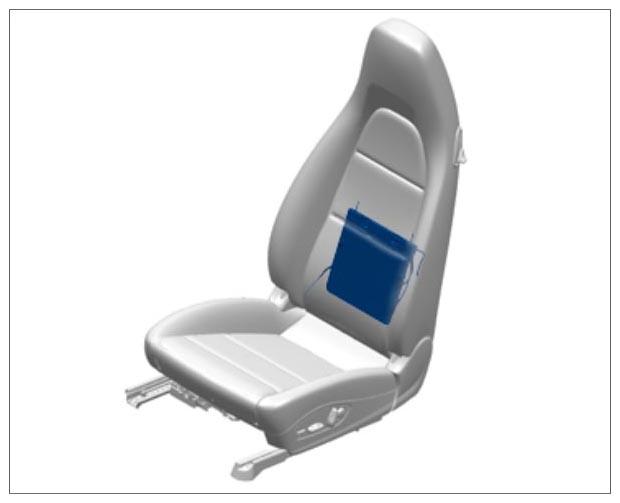

Fig 1: Identifying Lumbar Support Installation Position

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Disconnect air connection line -1- to the lumbar-support motor.
Information
- Cut air connection lines at a right angle.
- Do not crush air connection lines when cutting them.

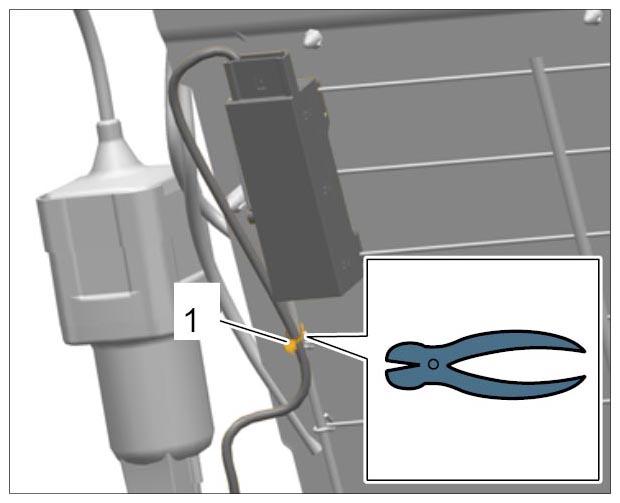

  Fig 2: Cutting Air Connection Line
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove retainer springs -1- for lumbar support -2- .

Fig 3: Removing Lumbar Support Retainer Springs
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Disconnect electric plug connection for control valve -1- (-arrows- ).

Fig 4: Disconnecting Electric Plug Connection For Control Valve
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove tie-wrap -1- .

Fig 5: Removing Tie-Wrap
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Lift lumbar support up (-arrows- ) and remove it from the bracket -1- .

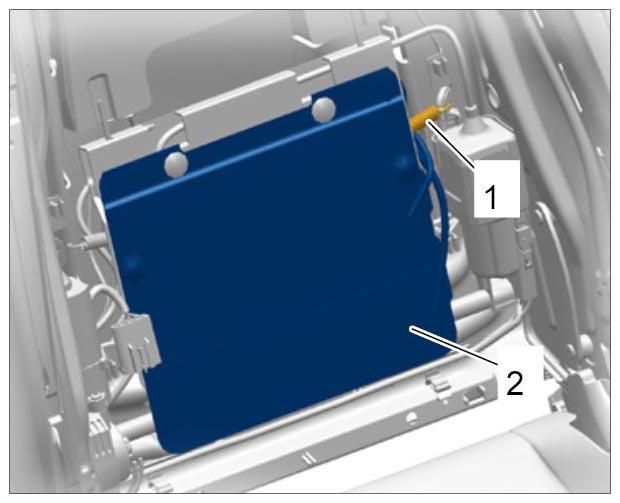

Fig 6: Removing Lumbar Support
