Subsequent Work

  1. Install front side airbag (only for seats with adaptive lumbar support)  . → INSTALLING FRONT SIDE AIRBAG .
  2. Install cover for backrest. → INSTALLING PADDING FOR FRONT BACKREST .

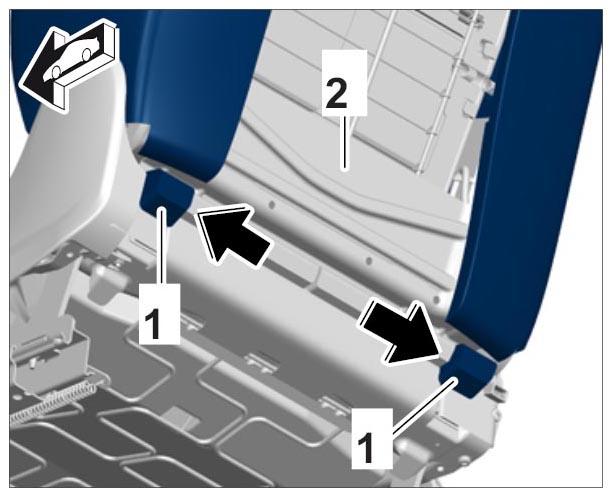

    1. 2.1. Slide cover for backrest -1-  on the backrest shell -2-  at the bottom left and right, starting at the middle and moving to the relevant side -direction of arrow-  .
      Fig 1: Installing Backrest Cover (Bottom)
      G09998240Courtesy of PORSCHE CARS NORTH AMERICA, INC.

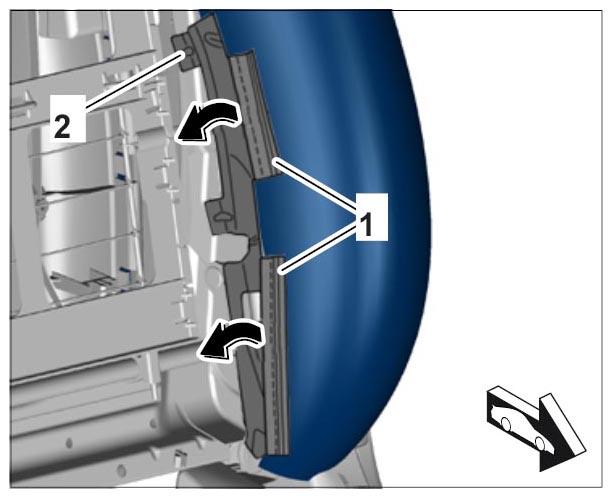

    2. 2.2. Engage cover piping -1-  at the left and right into the backrest frame -2-  .
      Fig 2: Engaging Cover Piping
      G09998241Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  3. Engage and secure cover for front middle backrest. → INSTALLING COVER FOR FRONT MIDDLE BACKREST
  4. Install cover for inner backrest. → Installing Cover For Inner Backrest  .
  5. Install front seat. → Removing Front Seat  .
