Technical Values
| Location | Description | Type | Basic value | Tolerance 1 | Tolerance 2 |
|---|---|---|---|---|---|

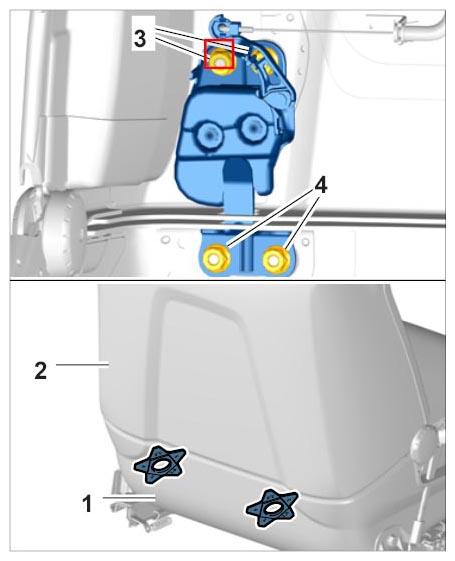

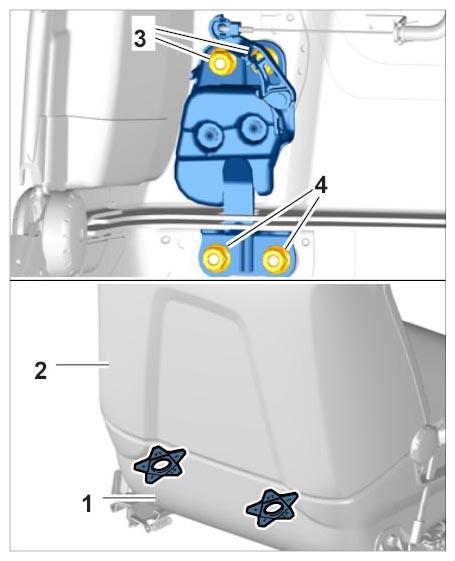

| Gap between seat shell and backrest shell | Gap dimension | 3 mm | -2 mm | ||
|
Adjusting lock for backrest adjustment |
|||||
| Fastening nut securing upper part of lock to backrest shell | Item 3 | Tightening torque | 22 Nm (16 ftlb.) | +/-3 Nm (+/- 2 ftlb.) | |
|
Adjusting lock for backrest adjustment |
|||||
| Fastening nut securing lower part of lock to seat shell | Item 4 | Tightening torque | 22 Nm (16 ftlb.) | +/-3 Nm (+/- 2 ftlb.) | |
|
Adjusting lock for backrest adjustment |
|||||
