Removing Control Button For Backrest Release

  1. Press the control button -1-  up and maintain in this position.

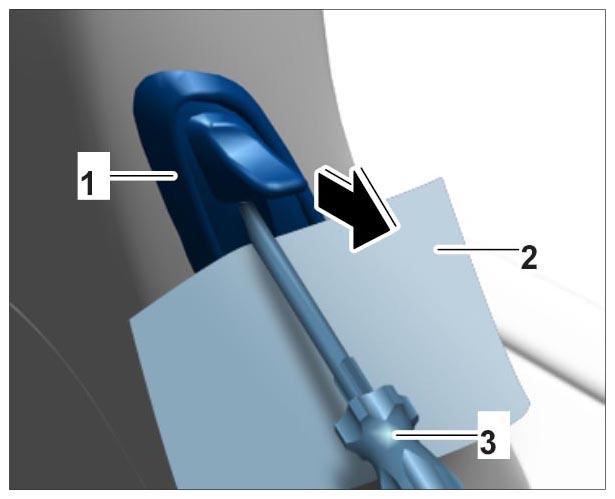

    Fig 1: Removing Control Button
    G09998208Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Information

    • The cloth protects the collar from damage when pushing out the control button.
    • Note that the control button will be damaged during removal. It must not be reused.
  2. Place a cloth -2-  onto the rosette, insert a screwdriver -3-  underneath the control button -1-  and press out the control button -arrow-  .
