Removing Bowden Cable For Backrest Release

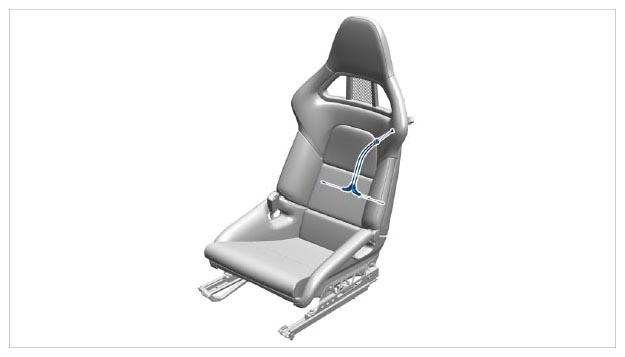

Fig 1: Identifying Backrest Bowden Cable Installation Position (Folding Sports Bucket Seat)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

1. Disengage bowden cable at the left and right on the upper part of the lock.

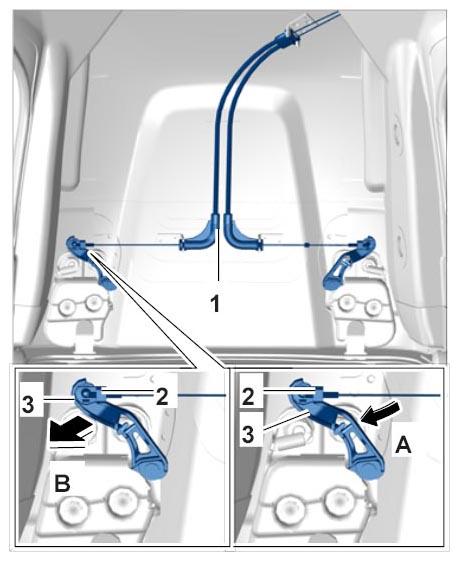

   Fig 2: Removing Bowden Cable

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
   1. 1.1. Unclip bowden cable -1-  from the locking clip -2-  and swivel it 90° -arrow A-  .
   2. 1.2. Remove bowden cable -1-  from the actuating lever -3-  (-arrow B-  ).
