Technical Values
| Location | Description | Type | Basic value | Tolerance 1 | Tolerance 2 |
|---|---|---|---|---|---|
| Fastening screw for bearing pin (hinge) | Item 2 | Tightening torque | 22 Nm (16 ftlb.) | +/-3 Nm (+/- 2 ftlb.) | |
|

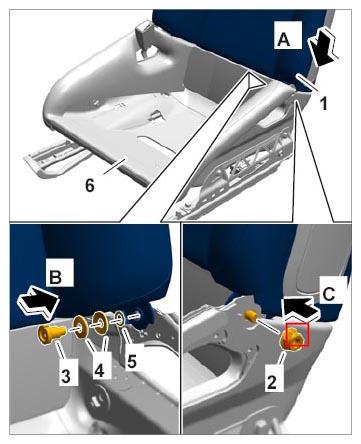

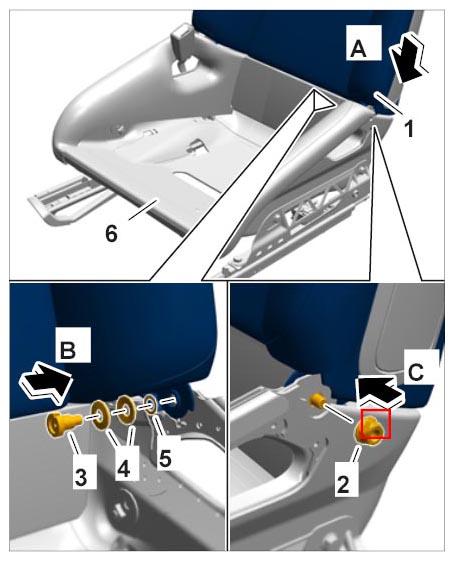

Installing backrest shell |
|||||
| Fastening screw securing inner hinge trim to bearing pin | Item 1 | Tightening torque | 3 Nm (2 ftlb.) | +/-0.3 Nm (+/- 0.2 ftlb.) | |
|

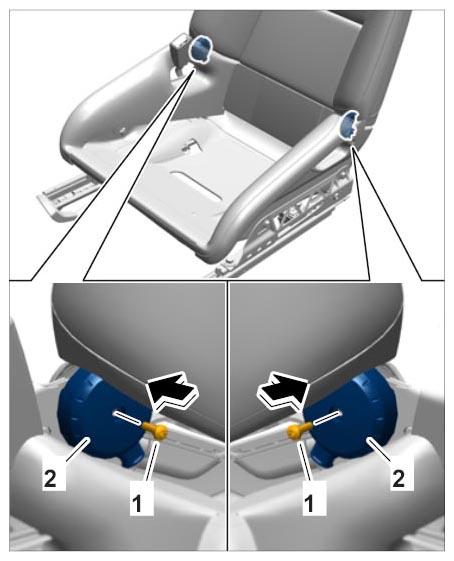

Installing trim on inner hinge |
|||||
