Installing Cushion Carrier For Front Backrest: Notes

Information

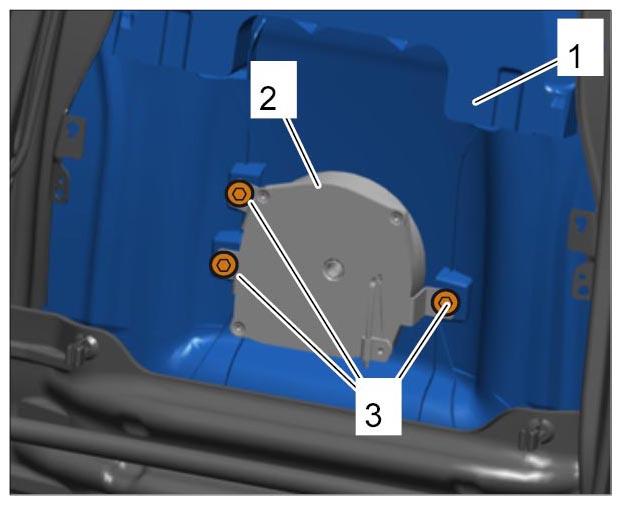

If the cushion carrier for the front backrest -1-  was replaced, the suction fan -2-  must be secured with screws on seats with active ventilation.

Fig 1: Installing Suction Fan

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

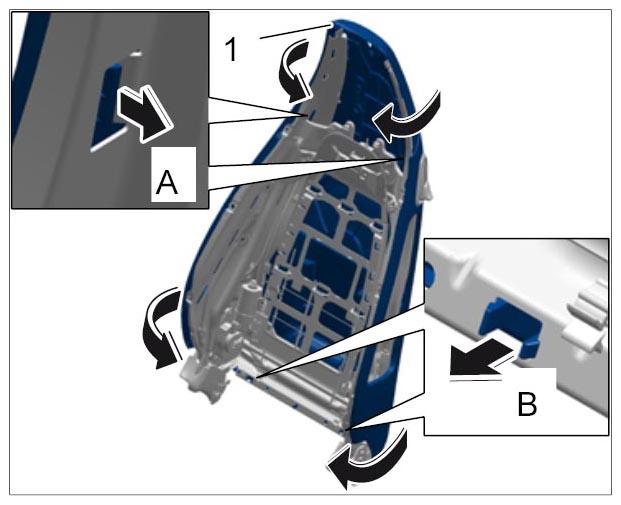

1. Press cushion carrier -1-  outward slightly close to the backrest release and position it on the backrest frame -2-  until the locking lugs engage at the top -inset A-  and bottom -inset B-  .
   Fig 2: Installing Cushion Carrier

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

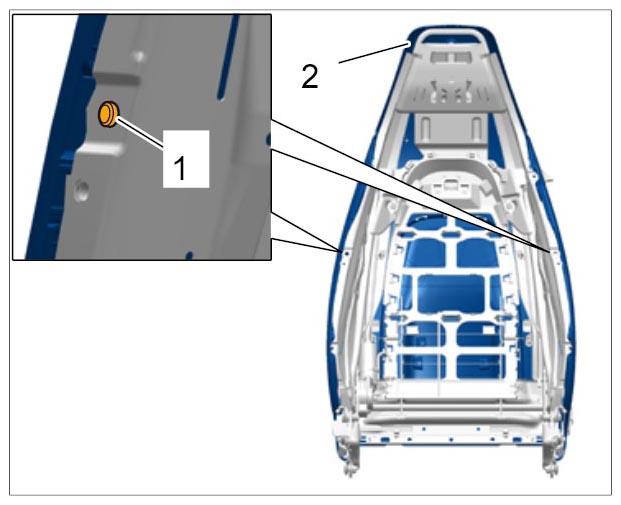

2. Fit guide sleeves -1-  on cushion carrier for front backrest into the backrest frame -2-  .
   Fig 3: Installing Cushion Carrier (Sides)

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

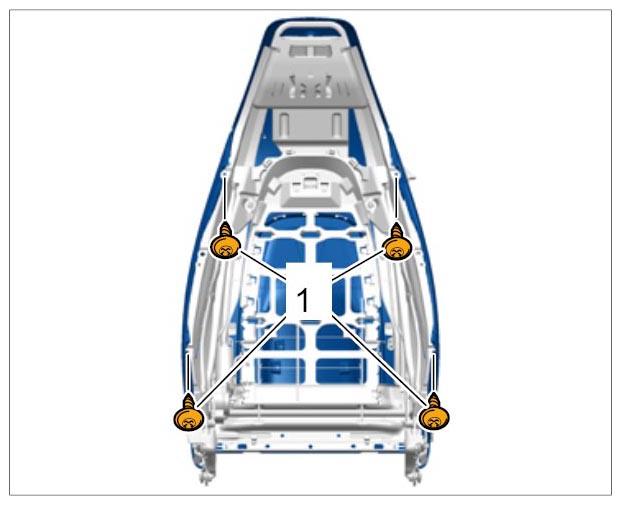

3. Tighten fastening screws -1-  .
