Removing Backrest Frame

Information

Two persons are needed to remove and install the backrest frame.

  1. Hold backrest frame -2-  upright.

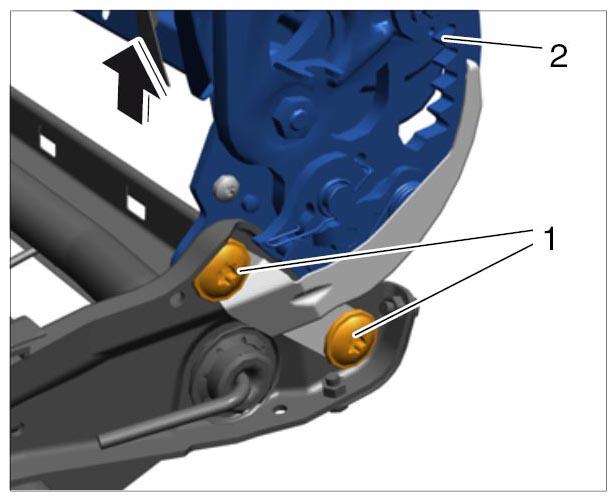

    Fig 1: Removing Backrest Frame
    G09998132Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Unscrew fastening screws -1-  on left and right and remove backrest frame -2-  up out of the seat frame.
