72 - Seat Frames -- 911 CARRERA (991)
>>
WM 721955 Replacing Backrest Frame (Except CARRERA "Edition", CARRERA Cabriolet "Edition", CARRERA 4 "Edition", CARRERA 4 Cabriolet "Edition")
>>
Disassembling Backrest Frame
>>
Removing Foam Part
Removing Foam Part
Remove foam part
-1-
at the headrest
-arrow-
.

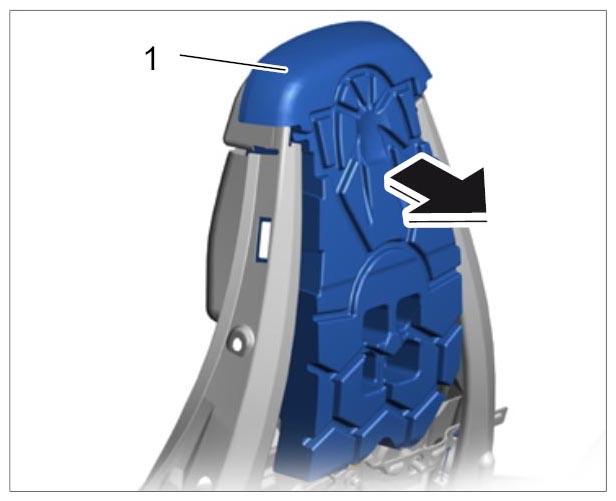

Fig 1: Removing Foam Part On Headrest
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
