Removing Air Cushion For Backrest

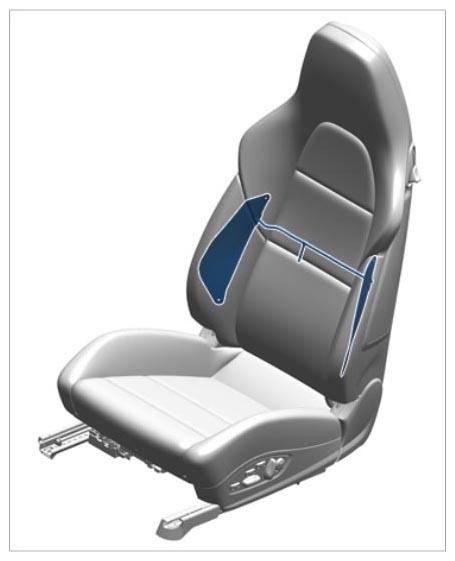

Fig 1: Identifying Air Cushion For Backrest Installation Position

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Disconnect air connection line from air cushion for backrest using a suitable tool in accordance with Length 30 mm .
Information
- Cut air connection lines at a right angle.
- Do not crush air connection lines when cutting them.

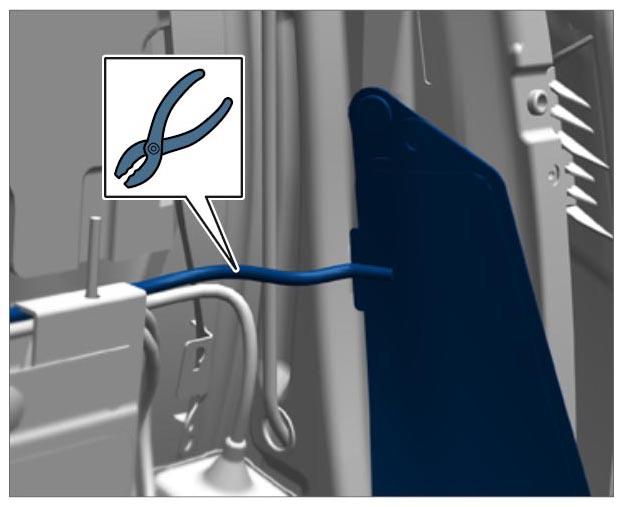

  Fig 2: Disconnecting Air Connection Line
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Press the pins -2- on the two expanding clips -1- through -arrow A- and remove expanding clips -arrow B- .

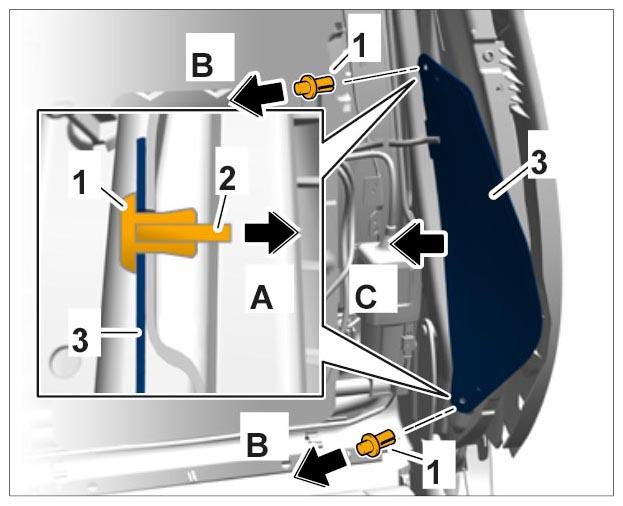

Fig 3: Removing Air Cushion For Backrest
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove air cushion for backrest -3- (-arrow C- ).
