Installing Air Cushion For Backrest

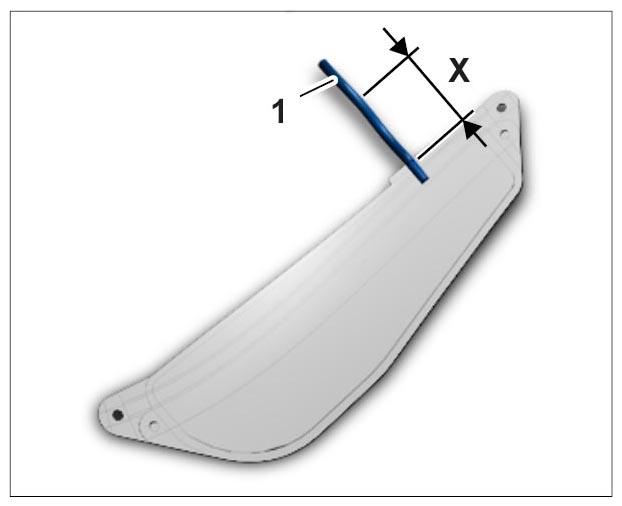

Disconnect air connection line -1- from new air cushion for backrest using a suitable tool. -X- Length 50 mm .

Fig 1: Disconnecting Air Connection Line
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

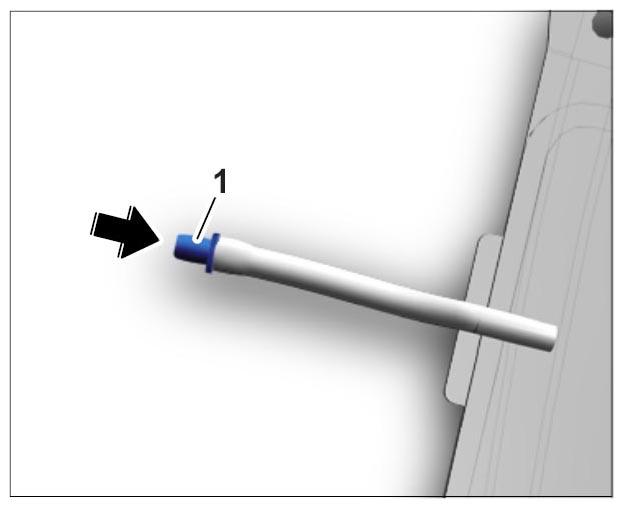

Attach hose connection -1- to air cushion for backrest -arrow- .

Fig 2: Attaching Hose Connection
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information
- Do not heat air connection lines for fitting.
- Do not use grease for fitting air connection lines.
- Do not use tools for fitting air connection lines.
- Do not strain air connection lines during fitting.

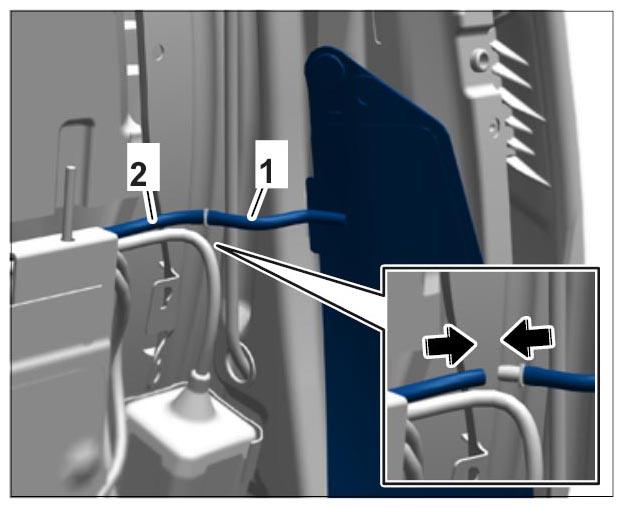

Connect hose connection from air cushion for backrest -1- to the lumbar support -2- using the air connection line -arrows- .

Fig 3: Connecting Hose Connection From Air Cushion For Backrest To Lumbar Support
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Position air cushion for backrest -3- (-arrow A- ).

Fig 4: Installing Air Cushion For Backrest
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

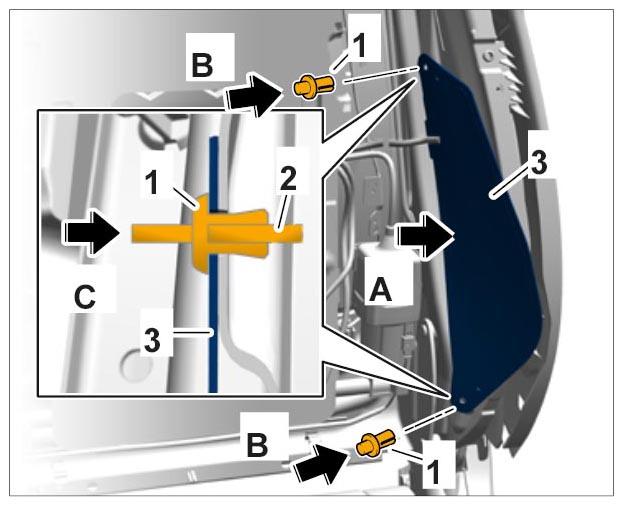

Secure air cushion for backrest -3- with the two expanding clips -1- (-arrows B- ). To do this, press the pins -2- into the expanding clips -1- (-arrow C- ).
