Technical Values
| Location | Description | Type | Basic value | Tolerance 1 | Tolerance 2 |
|---|---|---|---|---|---|
| Fastening screw securing outer bracket to guide rail | Item 1 | Tightening torque | 27 Nm (20 ftlb.) | +3 Nm (+2 ftlb.) | |
|

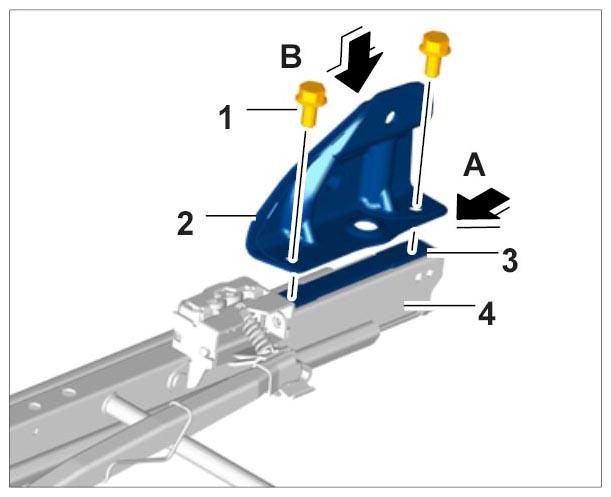

Installing outer bracket |
|||||
| Fastening screw securing rear inner bracket to guide rail | Item 1 | Tightening torque | 27 Nm (20 ftlb.) | +3 Nm (+2 ftlb.) | |
|

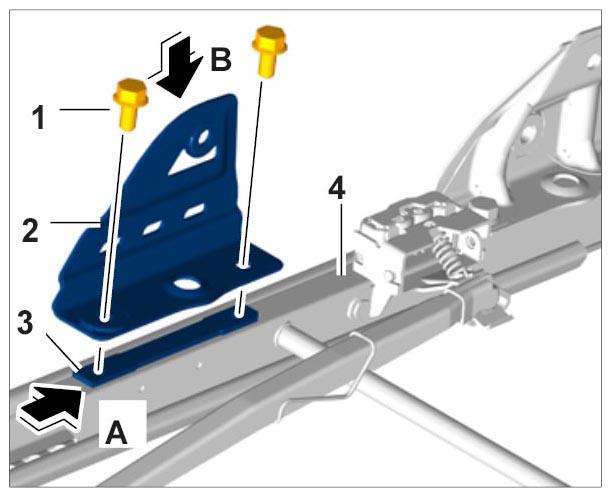

Installing rear inner bracket |
|||||
| Fastening screw securing front inner bracket to guide rail | Item 1 | Tightening torque | 27 Nm (20 ftlb.) | +3 Nm (+2 ftlb.) | |
|

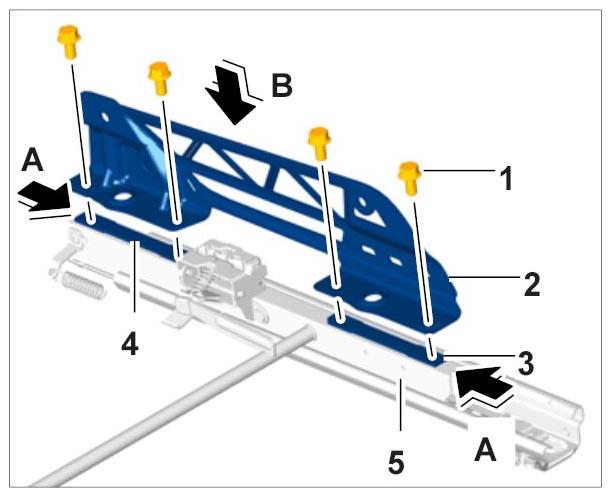

Installing front inner bracket |
|||||
