Removing Pressure Sensor Mat For Occupant Detection

Information

Passenger seat only for USA/Canada and Mexico vehicles.

1. Release and unplug electric plug connection from pressure sensor mat at the locking mechanism.

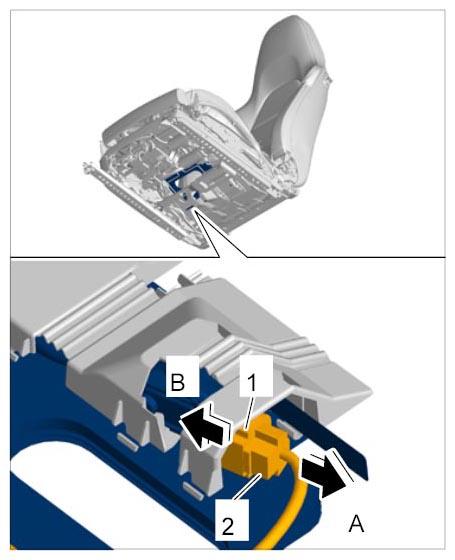

   Fig 1: Pulling Electric Plug Connection

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. Remove fixing clips.
3. Disengage the retainer plate from the looking hooks and guide pressure sensor mat out of the seat frame.

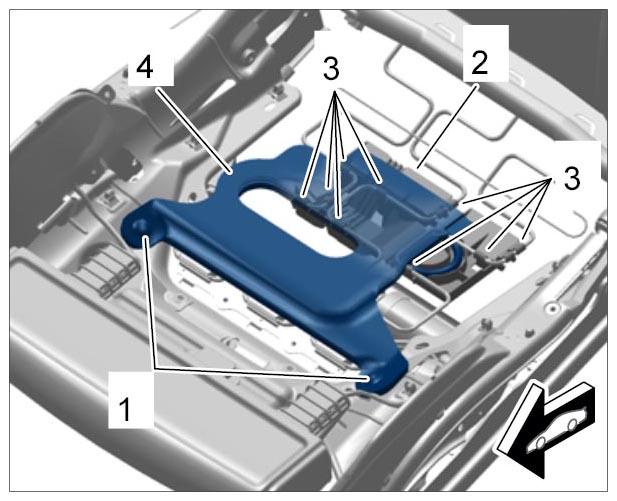

Fig 2: Removing Pressure Sensor Mat
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
