WM 720955 Replacing Front Seat Frame (Folding Sports Bucket Seat) (Except CARRERA "Edition", CARRERA Cabriolet "Edition", CARRERA 4 "Edition", CARRERA 4 Cabriolet "Edition")
>>
Technical Values
Technical Values
Location
Description
Type
Basic value
Tolerance 1
Tolerance 2

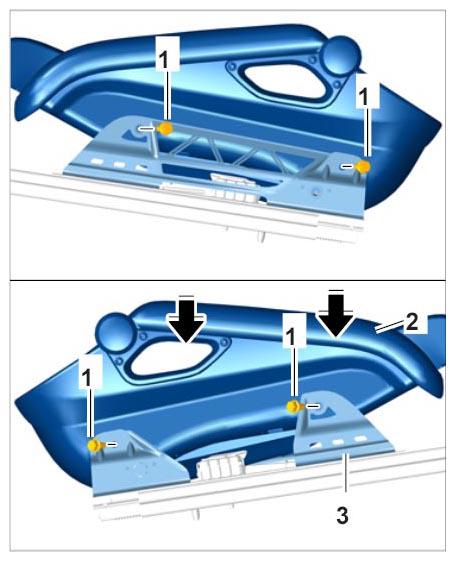

Fastening screw securing seat shell to bracket
Item 1
Tightening torque
24 Nm (18 ftlb.)
+3 Nm (+2 ftlb.)
Installing seat shell
