Removing Front Seat Frame

Fig 1: Identifying Front Seat Frame Position (Folding Sports Bucket Seat)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

Two persons are needed to remove and install the backrest shell.

1. Unscrew and remove fastening screws -1-  .
2. Lift seat shell -2-  up and remove it from the bracket -3-  (-arrows-  ).

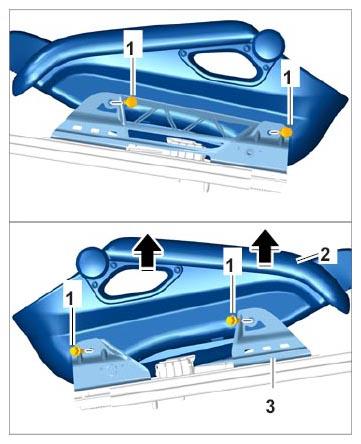

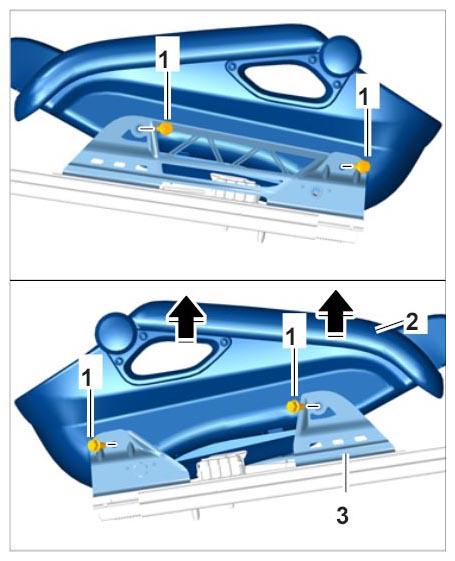

Fig 2: Removing Seat Shell
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
