Installing Front Seat Frame

Information

Two persons are needed to remove and install the backrest shell.

→ Mask the seat shell with adhesive tape.

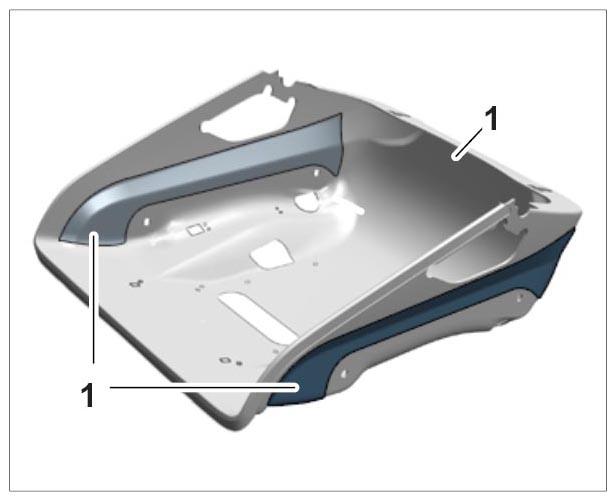

1. Mask the seat shell -1-  at the left and right in the marked area with adhesive tape -2-  (2-3 layers).
   Fig 1: Identifying Mask Seat Shell

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
   WARNING: Loosen the safety-related threaded joint.

   • Danger of injury if seat shell is not screwed down correctly.

   → Always replace fastening screws on seat shell.

   → Never make alterations to the micro-self-locking screws (e.g. never use lubricant, loosen bolts, and screw them down again).

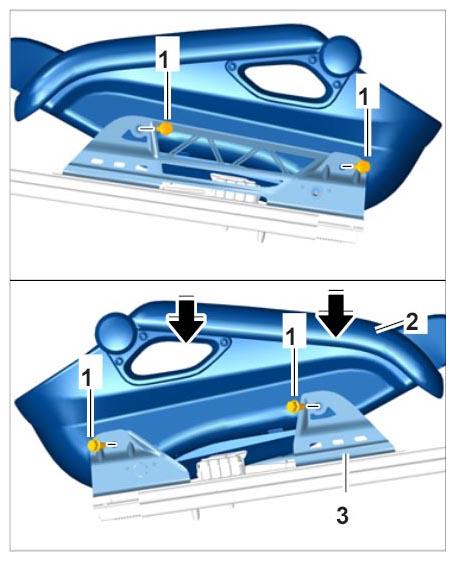

2. Position seat shell -2-  on the bracket -3-  (-arrows-  ) and secure with the fastening screws -1-  (Tightening torque 24 Nm (18 ftlb.) +3 Nm (+2 ftlb.)  ).
   Fig 2: Installing Seat Shell

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
