Installing Front Seat Frame

Information

Two persons are needed to remove and install the backrest shell.

→ Always replace fastening screws on seat shell.

→ Never make alterations to the micro-self-locking screws (e.g. never use lubricant, loosen bolts, and screw them down again).

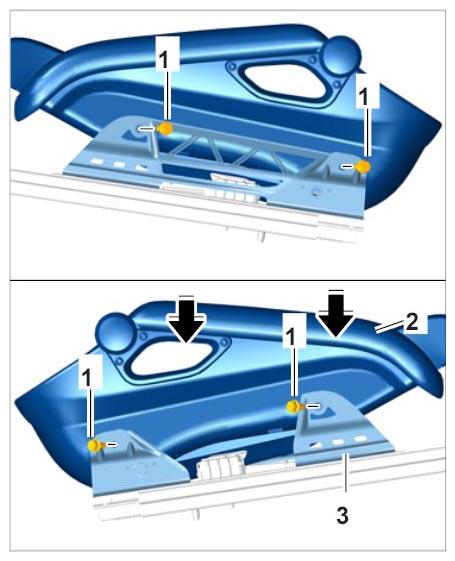

1. Position the seat shell -2-  on the bracket -3-  (-arrows-  ) and secure with the fastening screws -1-  at the left and right. Tightening torque 24 Nm (18 ftlb.) +3 Nm (+2 ftlb.)
   Fig 1: Installing Seat Shell

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

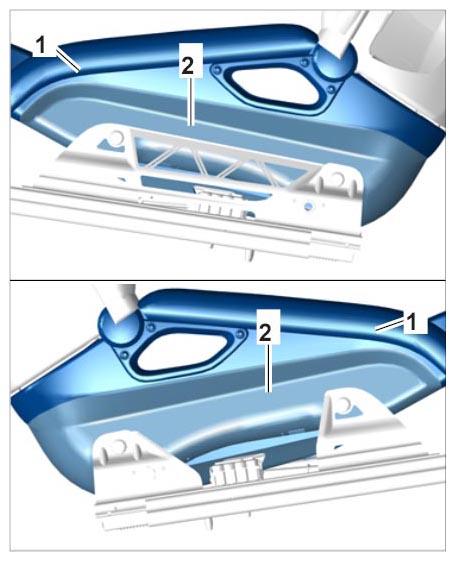

2. Remove adhesive tape -2-  on the seat shell -1-  at the left and right.
   Fig 2: Identifying Mask Seat Shell

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
