Undoing Seat Screws At The Rear

  1. Release front seat at the rear.
    1. 1.1. Move seat to front end position.
    2. 1.2. Unscrew rear fastening screws -1-  out of the seat rails on the right and left -2-  .

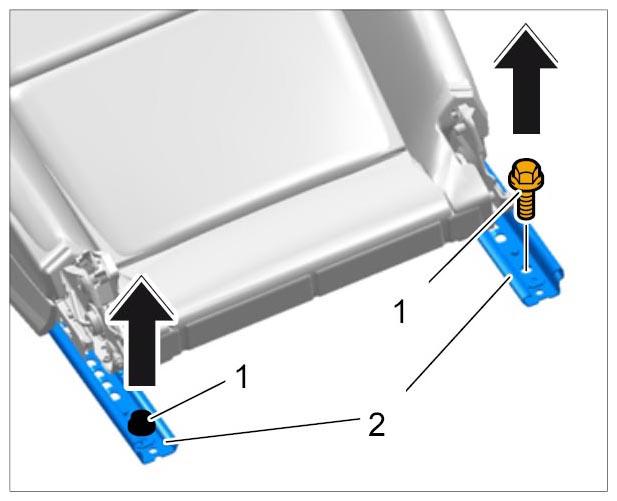

      Fig 1: Removing Seat Screws (Rear)
      G09998046Courtesy of PORSCHE CARS NORTH AMERICA, INC.
