Undoing Seat Screws At The Front

  1. Release front seat at the front.
    1. 1.1. Move seat -1-  to rear end position.
    2. 1.2. Unscrew front fastening screws -2-  out of the seat rails on the right and left -3-  .

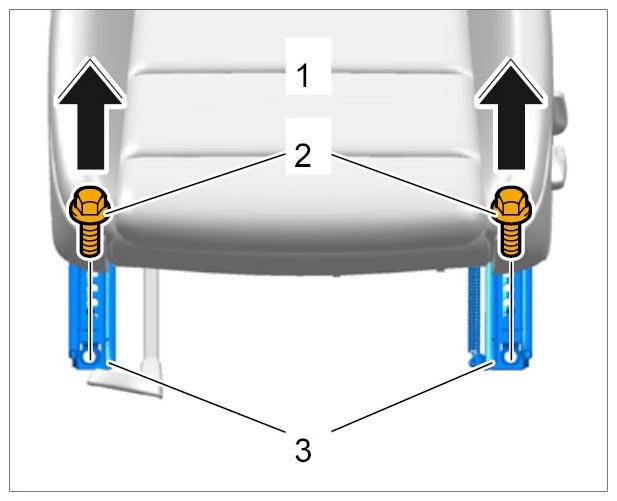

      Fig 1: Removing Seat Screws (Front)
      G09998045Courtesy of PORSCHE CARS NORTH AMERICA, INC.
