Disconnecting Electric Line

Information

The number of plug connections can vary, depending on equipment.

1. Disconnect the battery. → CONNECTING AND DISCONNECTING BATTERY
   1. 1.1. Tilt seat backwards.
   2. 1.2. Unclip -1-  wire harness.

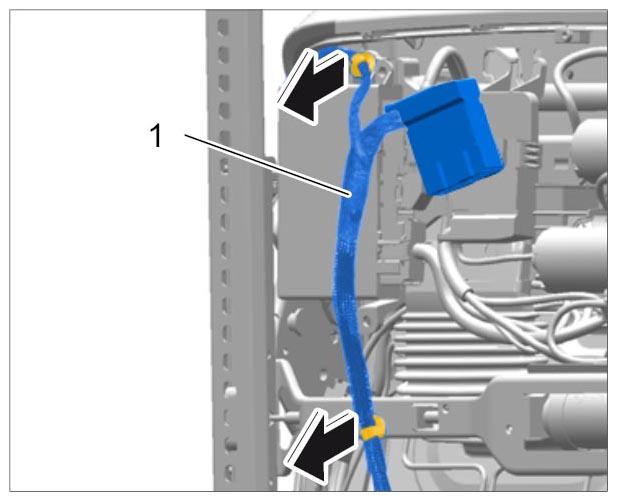

      Fig 1: Releasing Electrical Line

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
