Disconnecting Central Connector

  1. Release the safety lock of the central connector and disconnect connection -1- -arrow-  .
  2. Disconnect plug connection on control unit -2-

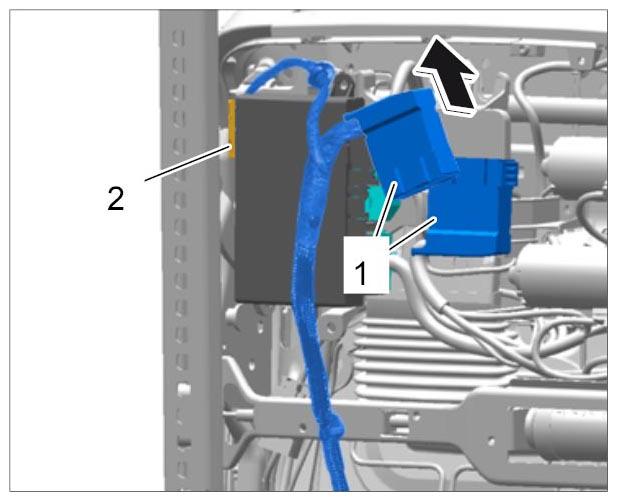

    Fig 1: Disconnecting Central Connector
    G09998048Courtesy of PORSCHE CARS NORTH AMERICA, INC.
