Technical Values
| Location | Description | Type | Basic value | Tolerance 1 | Tolerance 2 |
|---|---|---|---|---|---|
| Fastening screw securing folding sports bucket seat to body | Item 1 | Tightening torque | 50 Nm (37 ftlb.) | ||
|

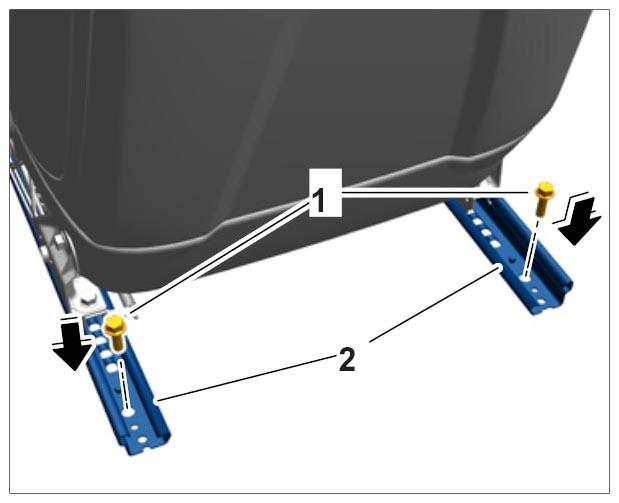

Securing sports bucket seat at the rear |
|||||
| Fastening screw securing folding sports bucket seat to body | Item 1 | Tightening torque | 50 Nm (37 ftlb.) | ||
|

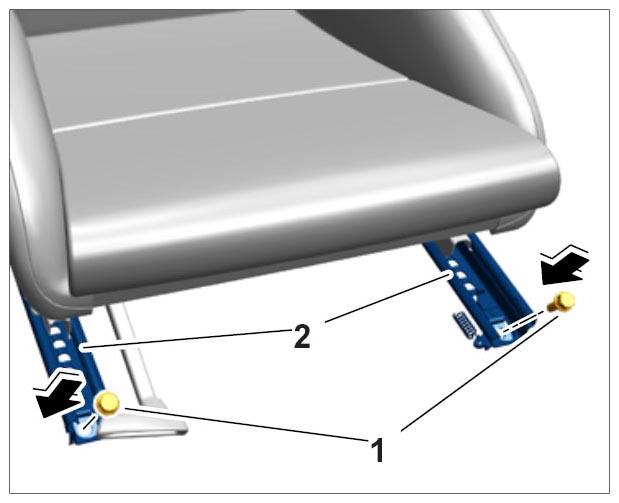

Tightening fastening screws at the front |
|||||
| Fastening screw securing seat belt mount to folding sports bucket seat | Item 1 | Tightening torque | 50 Nm (37 ftlb.) | ||
|

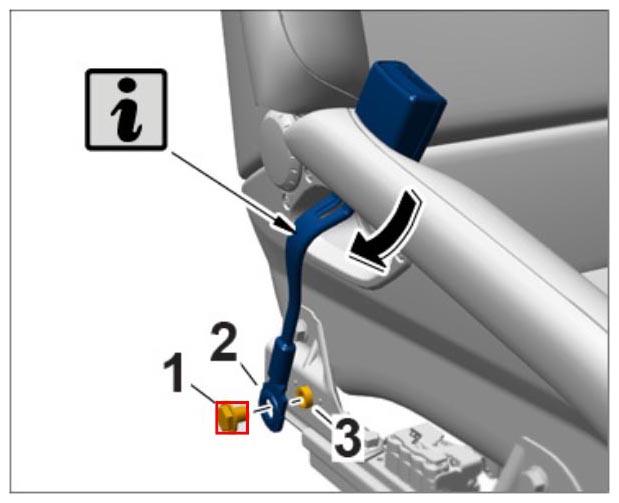

Securing seat belt mount to sports bucket seat |
|||||
