Removing Loudspeaker Trim Panel At The Left And Right

Information

To reduce the unclipping forces and thereby the risk of damage during removal, the removal steps must be carried out at the accessible connection points using a suitable tool.

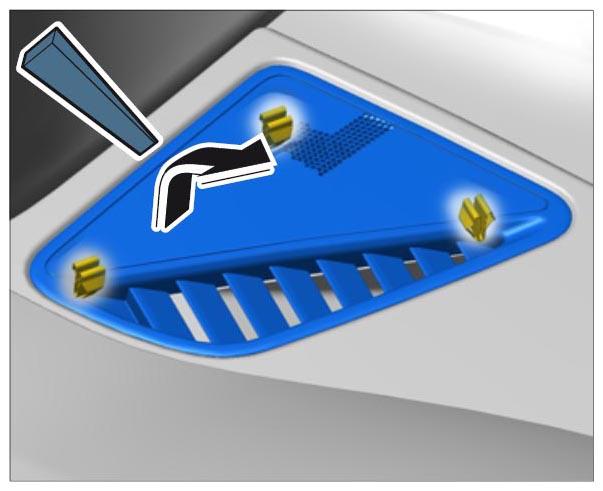

1. Press clamp on loudspeaker trim panel together using a suitable tool and unclip it by pulling it up.
   Fig 1: Removing Clamp

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

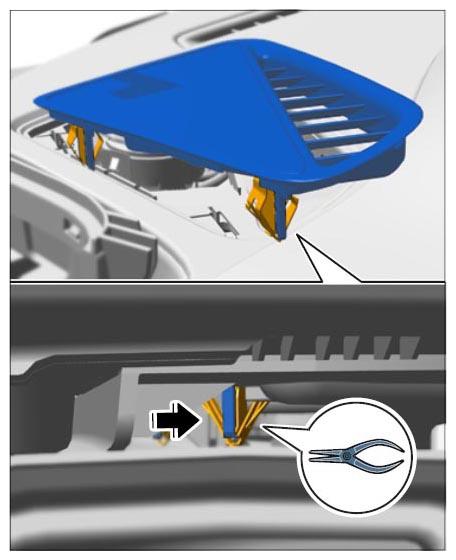

2. Unclip front of loudspeaker trim panel from the dashboard -arrow-  using a plastic wedge.
   Fig 2: Removing Loudspeaker Trim Panel Cover

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

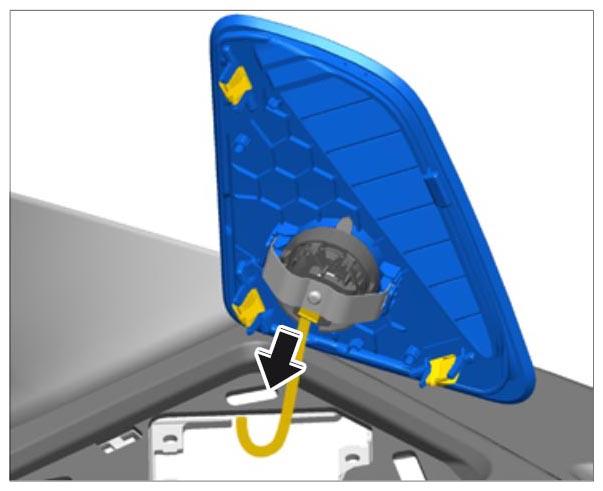

3. Pull off electric plug connection for tweeter -arrow-  . (Only for basic/high end tweeter)
   Fig 3: Pulling Off Connector

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
