Removing Loudspeaker Trim Panel At The Center

Information

To reduce the unclipping forces and thereby the risk of damage during removal, the removal steps must be carried out at the accessible connection points using a suitable tool.

1. Unclip rear part of loudspeaker trim panel from the dashboard -arrows-  using a plastic wedge, then unclip the other locking lugs.

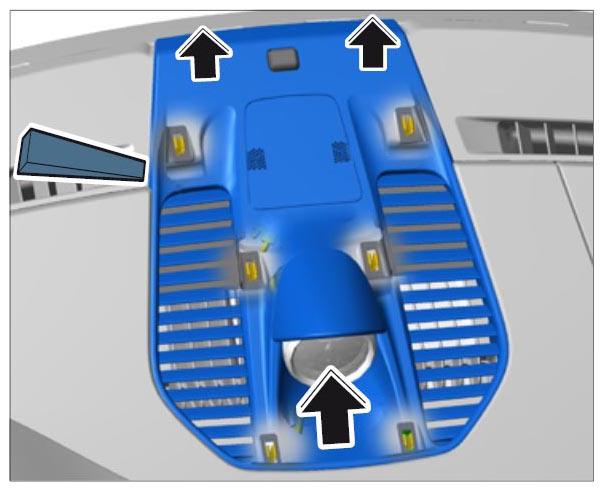

   Fig 1: Removing Loudspeaker Trim Panel (Center)

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. Release electric plug connection for the stopwatch -arrow a-  and pull it off -arrow A-  .

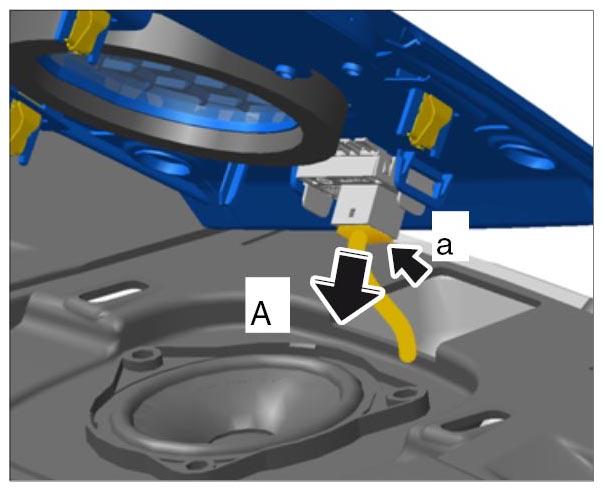

   Fig 2: Pulling Off Connector For Stopwatch

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
3. Release electric plug connection on the sun sensor -arrow a-  and pull it off -arrow A-  .

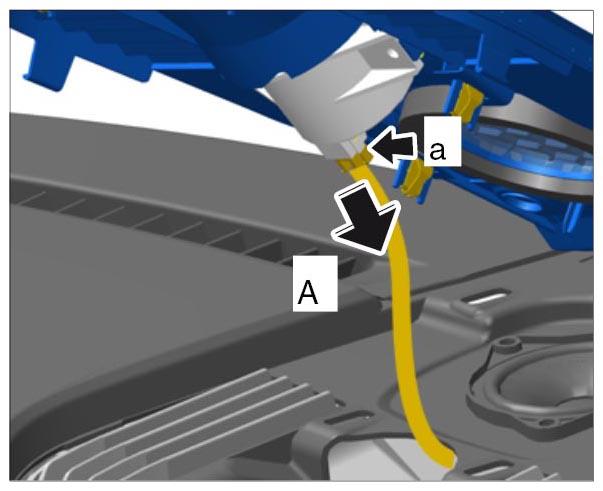

   Fig 3: Pulling Off Connector On Sun Sensor

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
