Technical Values

Location Description Type Basic value Tolerance 1 Tolerance 2
Fastening screws on trim panel for rear lid   Tightening torque 2.2 Nm (1.5 ftlb.) +/-0.2 Nm (+/- 0.1 ftlb.)

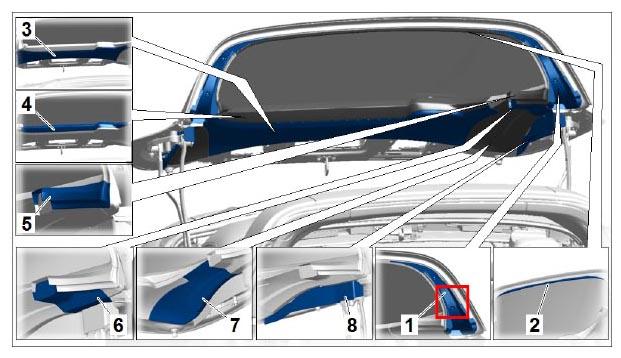

G09998021

Installation position of trim panel
