Removing Slide/Tilt Sunroof Trim
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
- Open sliding-roof panel approx. 5 cm with the ignition switched on.

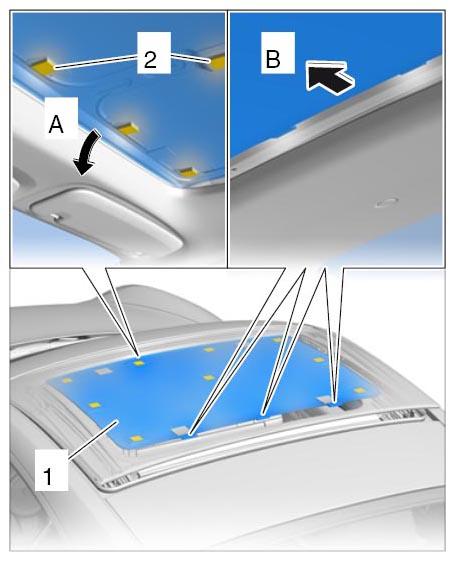

- Starting at the front, detach the slide/tilt sunroof trim -1-
at the Velcro fasteners (Duotec clip) -2-
(-arrow A-
).
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
- Pull slide/tilt sunroof trim -1-
at the rear out of the guide at the left and right -arrow B-
and lower it towards the front.

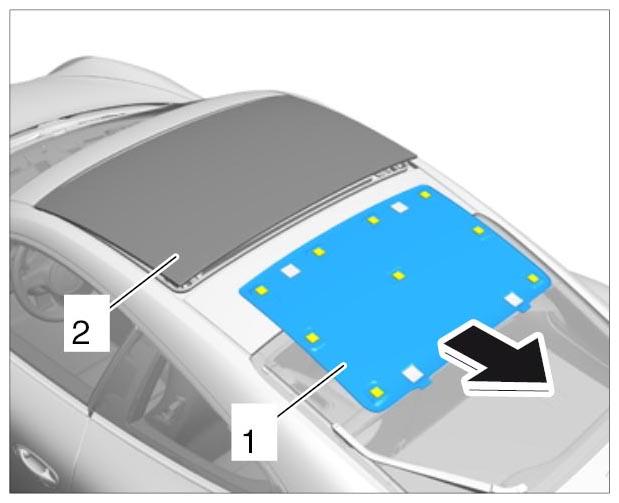

- Guide the slide/tilt sunroof trim -1-
out between the sliding-roof panel -2-
and body -arrow-
.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

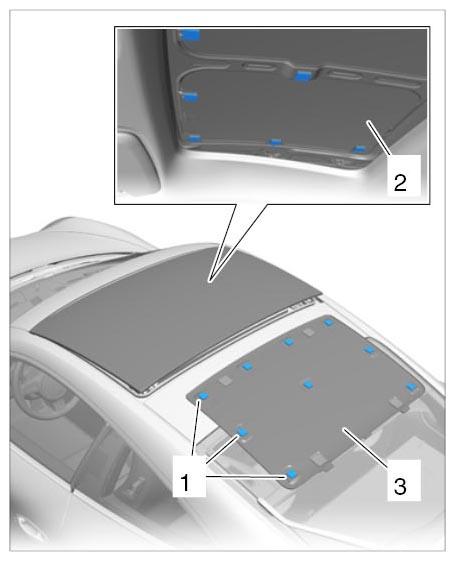

- Check Velcro fasteners -1-
on the sliding-roof panel -2-
and slide/tilt sunroof trim -3-
and replace them if necessary.
