Removing Rear Roof Trim Panel

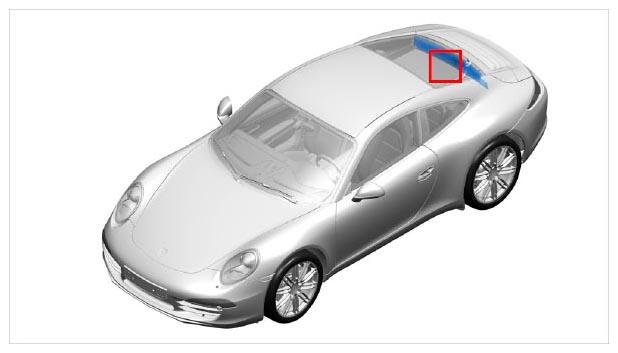

Fig 1: Identifying Rear Roof Trim Panel Installation Position
G09998014Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Fold front seat and rear seat backrest forward.
  2. Reach in under the roof trim panel -1-  , lift it up -arrow A-  and pull it out -arrow B-  .

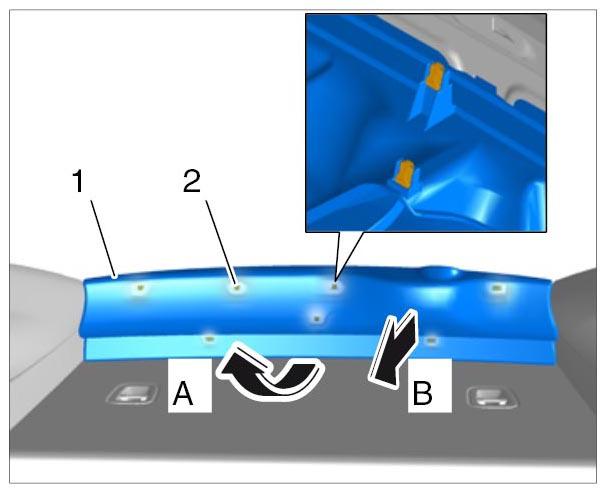

    Fig 2: Removing Rear Roof Trim Panel
    G09998015Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  3. Check fastening clamps -2-  and replace them if necessary.
