Installing Rear Roof Trim Panel

  1. Position roof trim panel -1-  and press it in -arrows-  until the fastening clamps -2-  engage with an audible click.

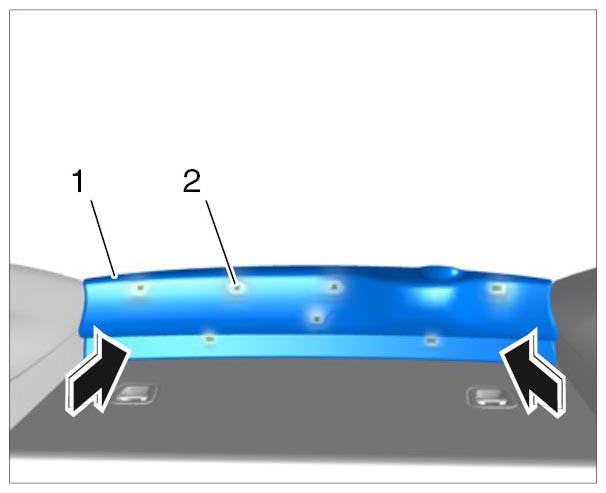

    Fig 1: Installing Rear Roof Trim Panel
    G09998016Courtesy of PORSCHE CARS NORTH AMERICA, INC.
