Removing Headliner

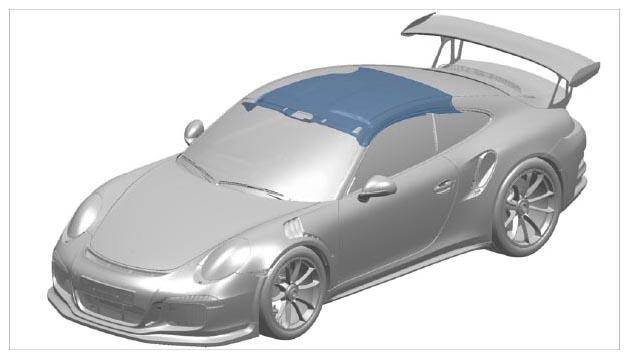

Fig 1: Identifying Headliner Installation Position

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

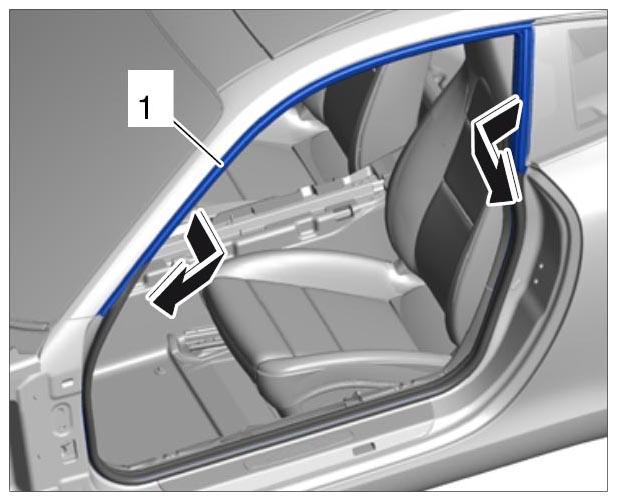

Pull rubber door seal -1- out of the body close to the headliner -arrows- .

Fig 2: Pulling Rubber Door Seal Out Of Body Close To Headliner
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove sun visor holder.

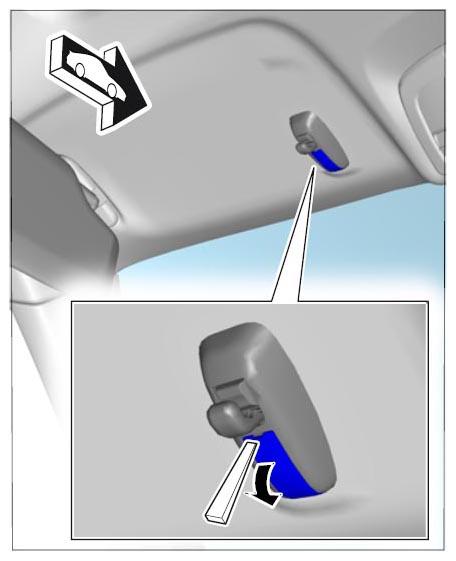

Fig 3: Opening Sun Visor Holder Cover
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

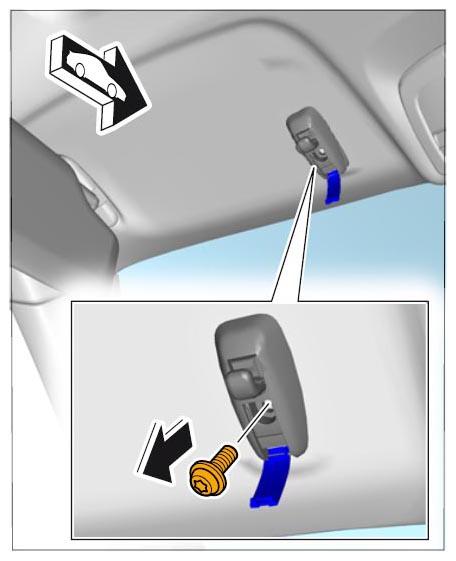

1. 2.1. Open cover for sun visor holder -arrow- .
2. 2.2. Unscrew fastening screw -arrow- .

  Fig 4: Removing Sun Visor Holder
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

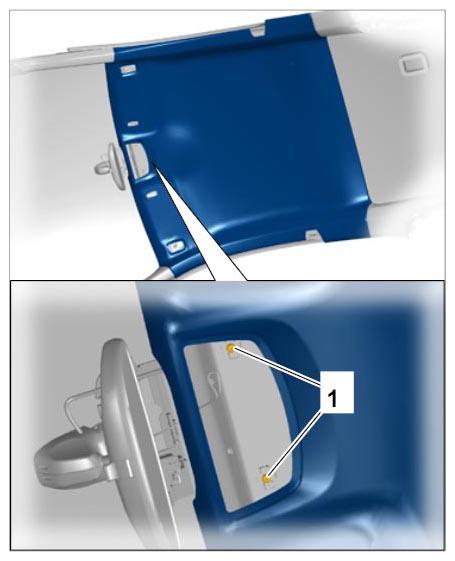

Unscrew fastening screws -1- close to the roof console.

Fig 5: Identifying Headliner Fastening Screws
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

To reduce the unclipping forces and thereby the risk of damage during removal, the removal steps must be carried out at the accessible connection points using a suitable tool.

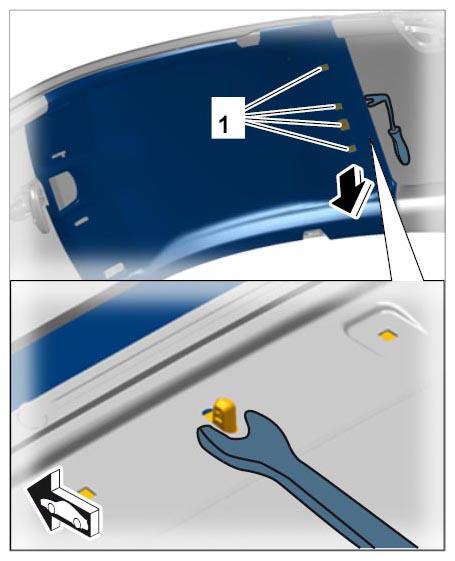

Unclip fastening clips -1- on the headliner at the rear using the disassembly tool Nr.21 .

Fig 6: Removing Headliner At Rear
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
1. 4.1. Check fixing clips on the headliner for deformation and replace them if necessary.
  Information

  Make sure that the roof cover does not buckle.
Remove headliner.
1. 5.1. Two people are needed in order to remove the headliner.
  1. 5.1.1. Position of first person: Driver's door.
  2. 5.1.2. Position of second person: Passenger's door.

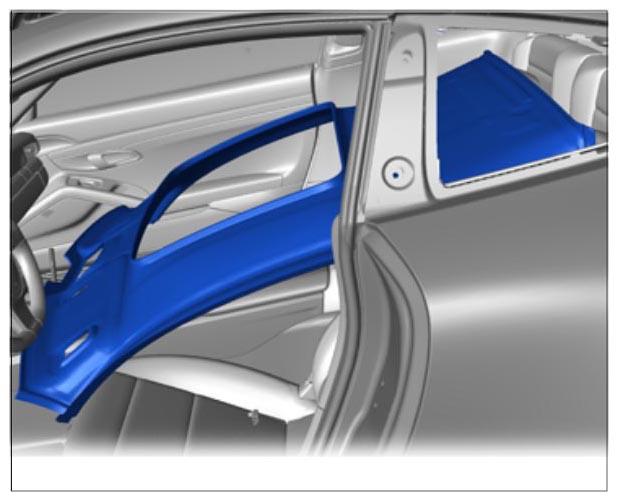

2. 5.2. Place the front edge of the headliner on the center console.

  Fig 7: Identifying Headliner On Center Console
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

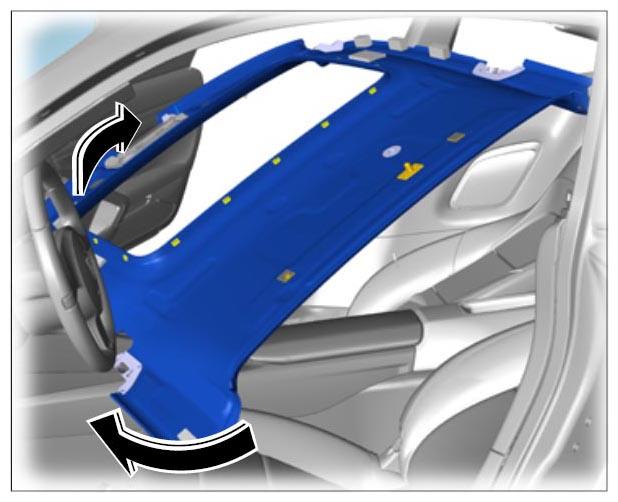

3. 5.3. Turn the headliner clockwise -arrows- .

  Fig 8: Removing Headliner
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

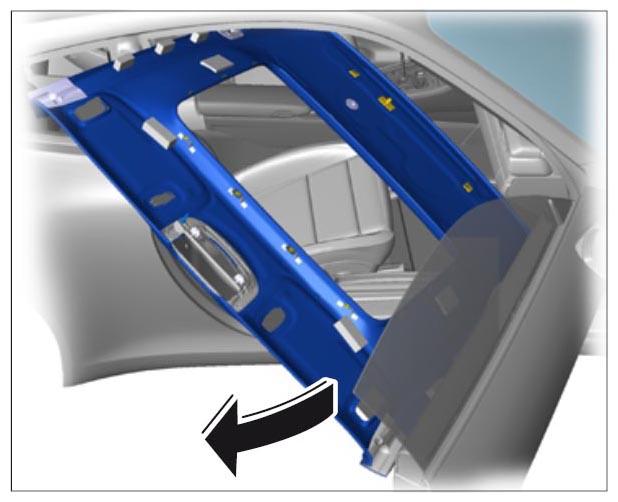

4. 5.4. Remove headliner through the passenger's door -arrow- .

  Fig 9: Swivelling Headliner Out Of Door Aperture
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
