Installing Headliner

Information

Make sure that the roof cover does not buckle.

1. Guide in the headliner.
   1. 1.1. Two people are needed in order to guide in the headliner.
      1. 1.1.1. Position of first person: Driver's door.
      2. 1.1.2. Position of second person: Passenger's door.
   2. 1.2. Guide the headliner into the vehicle through the passenger's side -arrow-  .

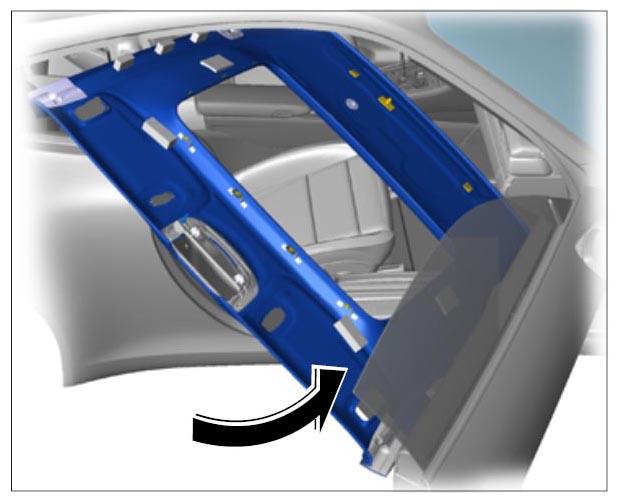

      Fig 1: Swivelling Headliner Into Door Aperture

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
   3. 1.3. Turn the headliner anti-clockwise and place the front edge of the headliner on the center console.

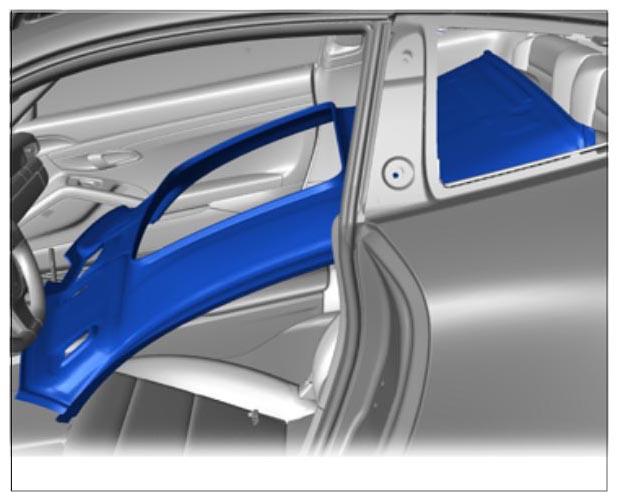

      Fig 2: Identifying Headliner On center Console

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. Two people must now lift up the headliner and clip in the fastening clips at the rear -arrow-  .

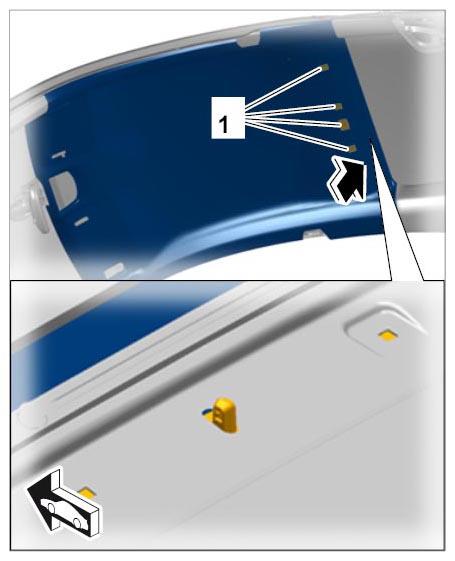

   Fig 3: Clipping In Headliner At Rear

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
3. Screw in and tighten fastening screws -1-  in the roof console area.

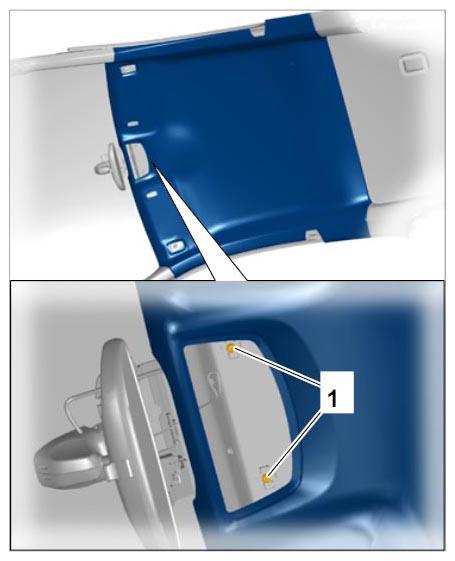

   Fig 4: Identifying Roof Console Fastening Screws

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
4. Install sun visor holder.

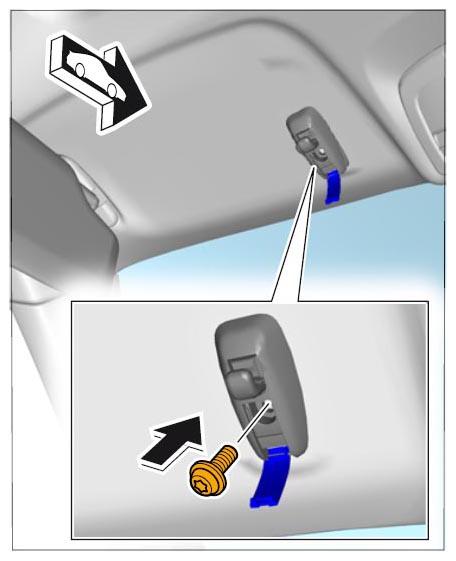

   Fig 5: Installing Sun Visor Holder

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
   1. 4.1. Position sun visor holder -arrow-  .
   2. 4.2. Tighten fastening screw → Tightening torque: 5.5 Nm (4 ftlb.)  .
   3. 4.3. Close the cover until it engages securely -arrow-  .

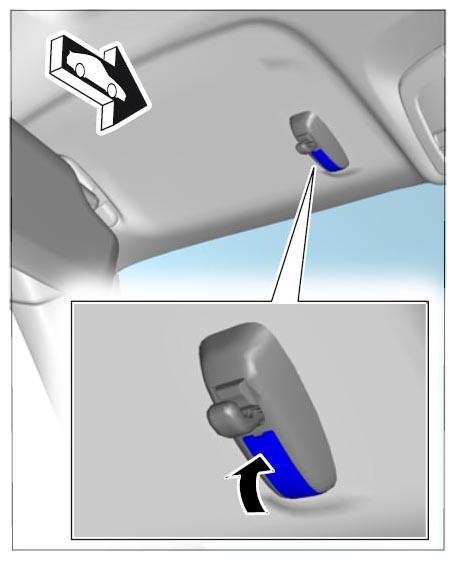

      Fig 6: Closing Sun Visor Holder Cover

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
5. Fit rubber door seal -1-  on the body flange close to the headliner -arrows-  .

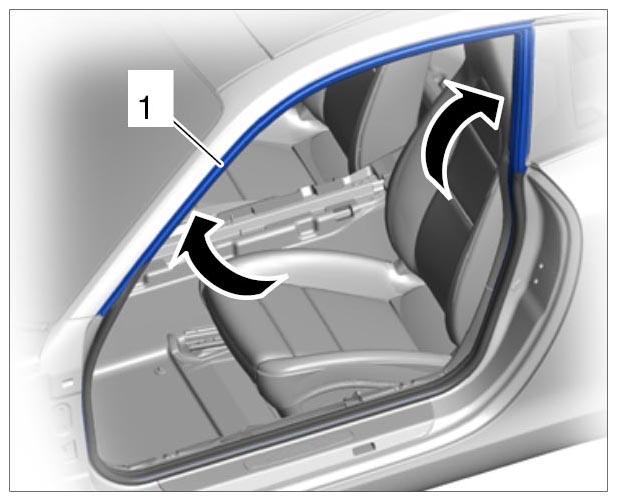

   Fig 7: Securing Rubber Seal

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
