Removing Rear Side Trim Panel

→ Remove the ignition key and switch off load before disconnecting or removing load.

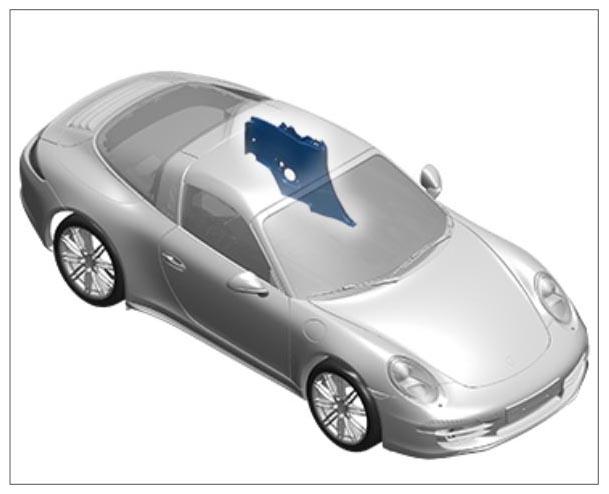

Fig 1: Identifying Side Trim Panel Installation Position

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

1. Unscrew and remove locking pins for rear backrest -1-  .

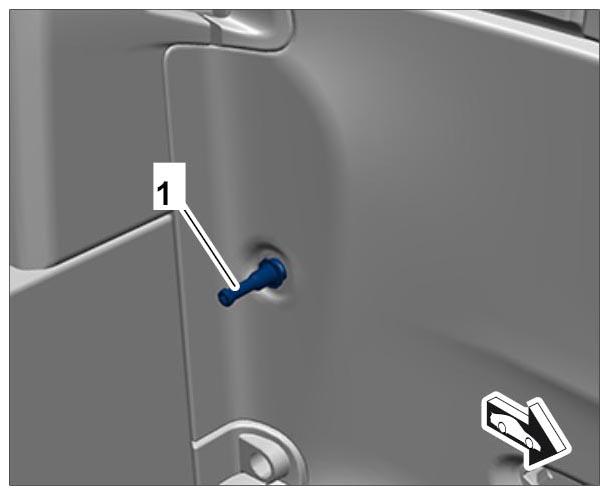

   Fig 2: Identifying Locking Pins For Rear Backrest

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. Pull side trim panel -1-  forward -arrow-  out of the guide.

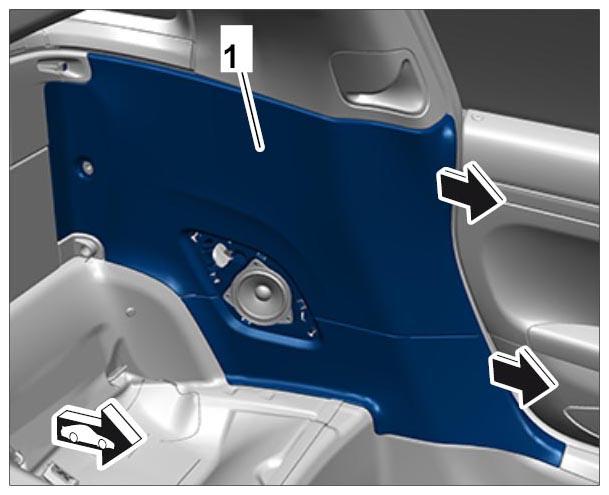

   Fig 3: Removing Side Trim Panel

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
3. Disconnect electric plug connections -1-  at the loudspeakers.

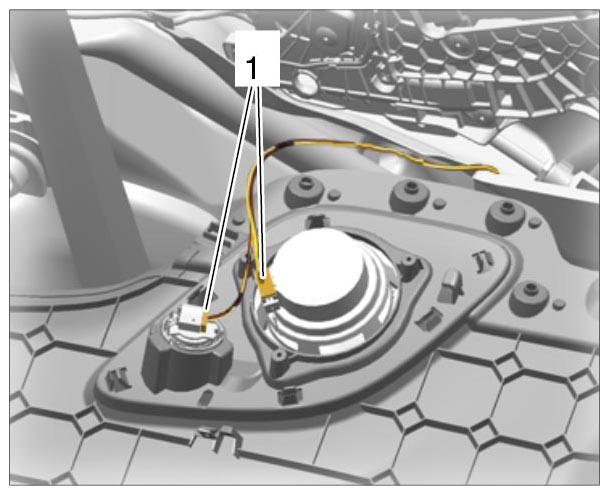

   Fig 4: Identifying Electric Plug Connection

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
4. Remove side trim panel.
