Removing Rear Side Trim Panel

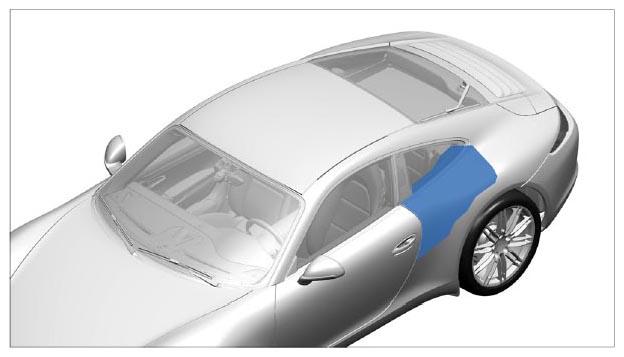

Fig 1: Identifying Rear Side Trim Panel Installation Position
G09997954Courtesy of PORSCHE CARS NORTH AMERICA, INC.

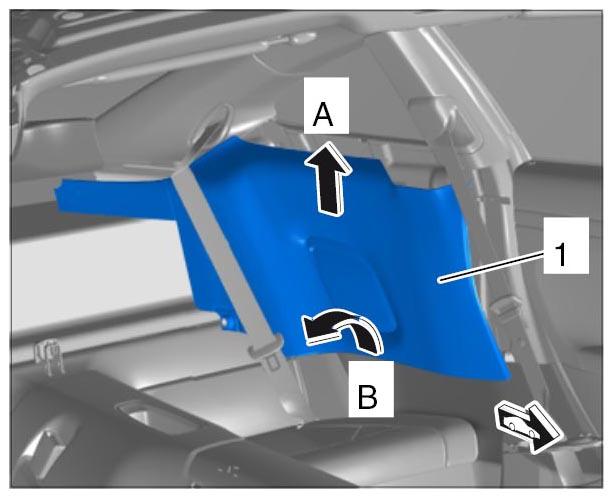

  1. Pull side trim panel -1-  up -arrow A-  and swivel it inwards. -arrow B-
    Fig 2: Removing Side Trim Panel
    G09997955Courtesy of PORSCHE CARS NORTH AMERICA, INC.

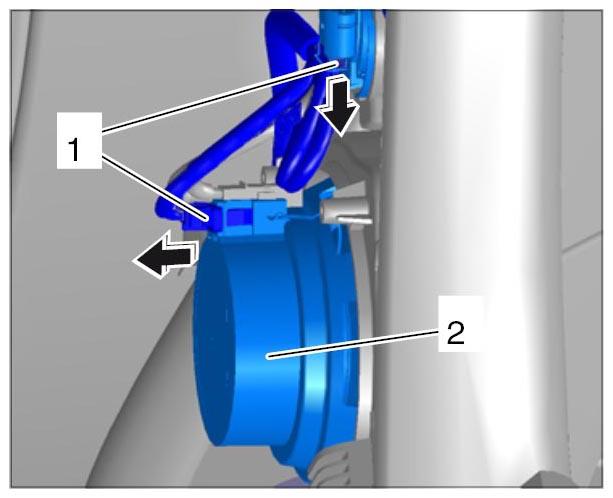

  2. Disconnect electric plug connection -1-  at the loudspeakers -2-  .
    Fig 3: Disconnecting Loudspeaker
    G09997956Courtesy of PORSCHE CARS NORTH AMERICA, INC.
