Removing C-Pillar Trim Panel

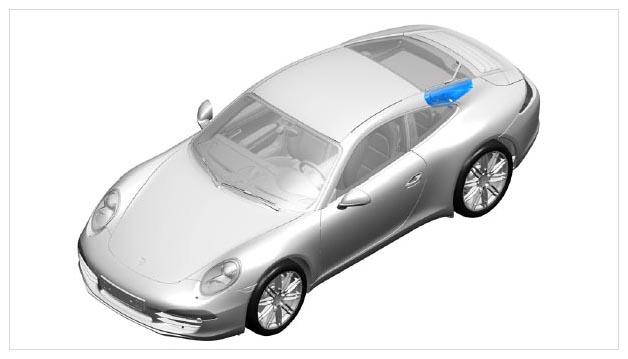

Fig 1: Identifying C-Pillar Trim Panel Installation Position
G09997947Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Pull C-pillar trim panel -1-  inwards.

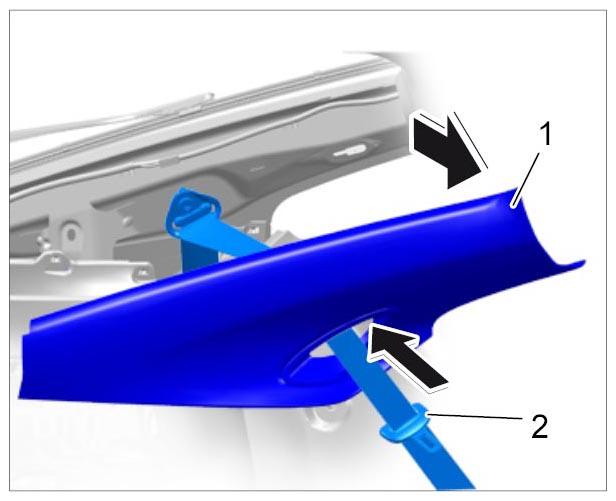

    Fig 2: Removing C-Pillar Trim Panel
    G09997948Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Guide seat belt with fitting -2-  through the C-pillar trim panel -arrow A-  .
  3. Remove C-pillar trim panel -1-  .
