Installing C-Pillar Trim Panel

Installation is performed in reverse order to removal

  1. Position guide pins for trim panel on the bodyshell and clip them in.

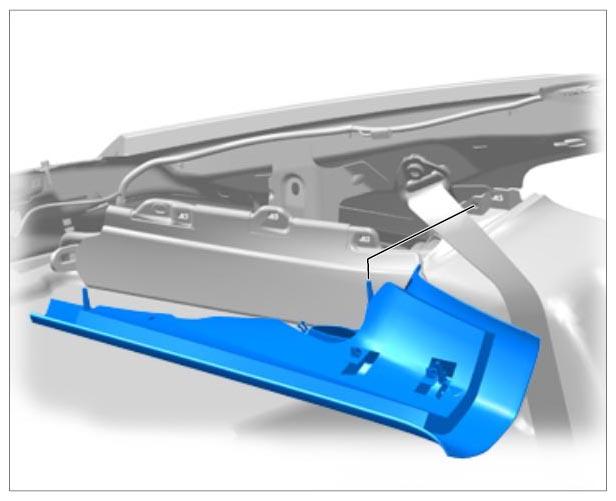

    Fig 1: Identifying C-Pillar Trim Panel Guide Pins
    G09997949Courtesy of PORSCHE CARS NORTH AMERICA, INC.
