Removing A-Pillar Trim (Coupe): Notes

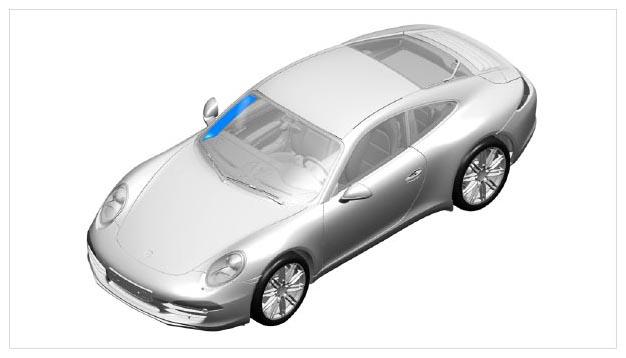

Fig 1: Identifying A-Pillar Trim Installation Position
G09997922Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Pull A-pillar trim -1-  inwards along the windscreen frame -2-  (-arrow A-  ) and lift it up and out -arrow B-  .

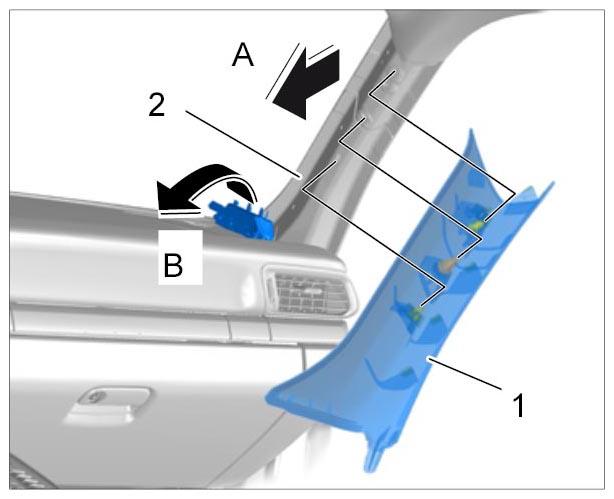

    Fig 2: Removing A-Pillar Trim
    G09997923Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Check sheetmetal clips and fastening plugs and replace them if necessary.
