Removing Rear Cover

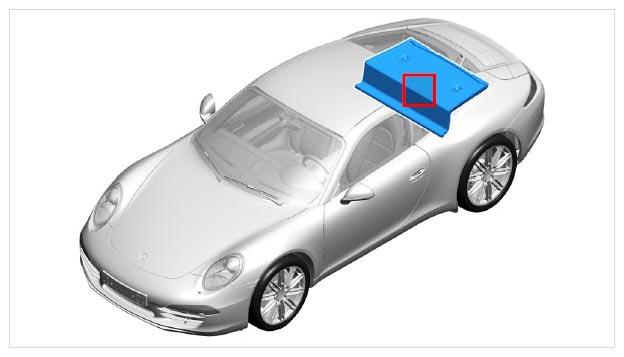

Fig 1: Identifying Rear Cover Installation Position
G09997917Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Unclip cover at the left and right -arrow-  .
    Fig 2: Removing Cover
    G09997918Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Pull rear cover up at the front -arrow A-  .

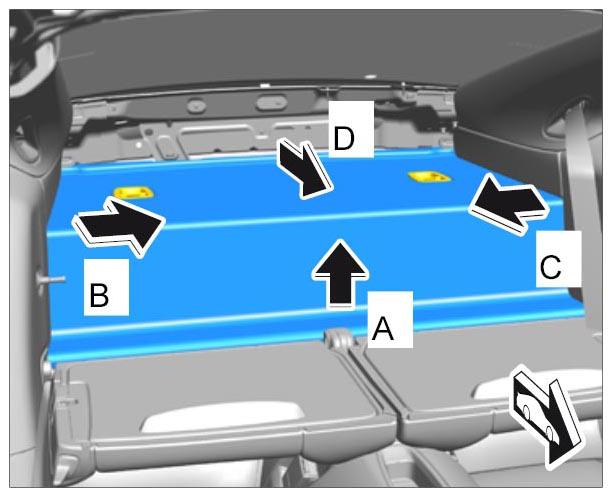

    Fig 3: Removing Rear Cover
    G09997919Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  3. Guide rear cover sideways out of the side trim panel -arrow B, C-  and pull it forward to remove it -arrow D-  .
