Installing Rear Cover

  1. Position rear cover at the rear -arrow A-  .

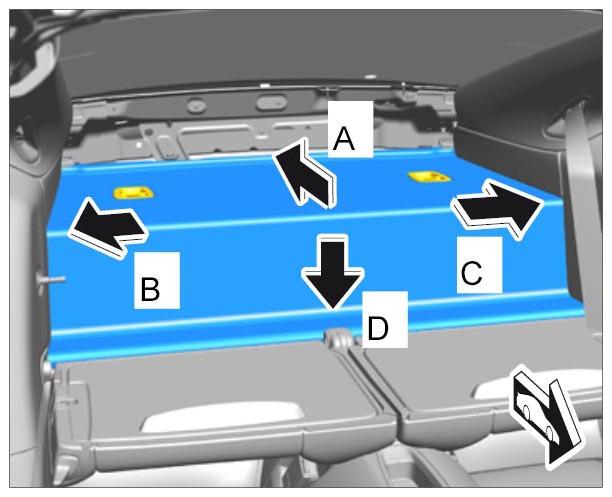

    Fig 1: Installing Rear Cover
    G09997920Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Guide rear cover in sideways -arrow B, C-  and press it in at the front -arrow D-  .
  3. Clip in cover at the left and right -arrow-  .

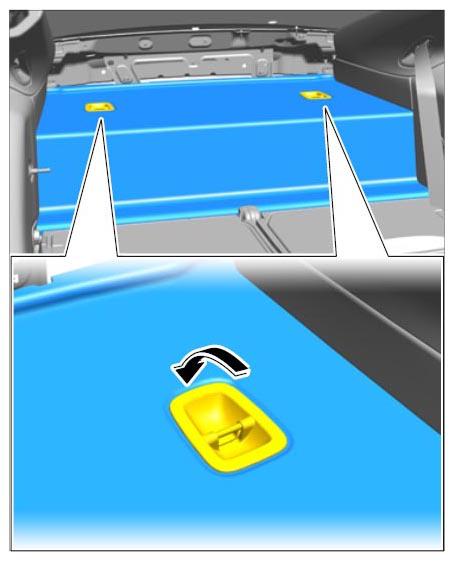

    Fig 2: Installing Cover In Sideways
    G09997921Courtesy of PORSCHE CARS NORTH AMERICA, INC.
