Removing Carpet On Passenger's Side

  1. Loosen Velcro fasteners -1-  .

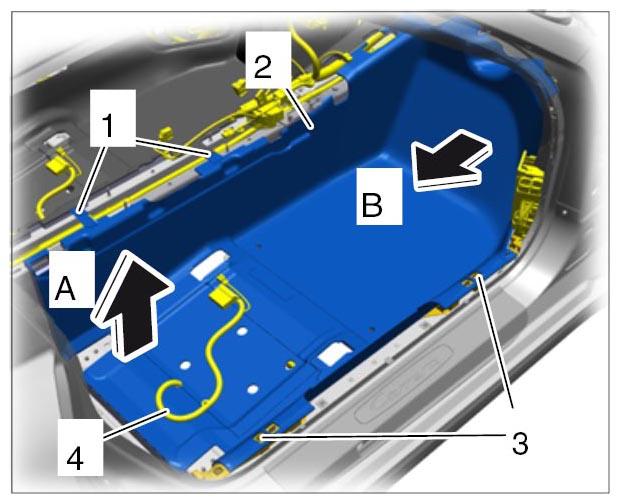

    Fig 1: Removing Carpet On Passenger's Side
    G09997912Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Unclip the carpet -2-  at the holder -3-  .
  3. Route electric line -4-  under the carpet -2-  .
  4. Fold in the carpet -2-  at the sides.
  5. Lift up the carpet -2-  at the rear -A-  and remove it by pulling it back -B-  .
