Installing Front Side Section Trim Panel

Information

Check that all fixing clips are positioned fully and correctly.

Check that the fixing clips are not bent or broken.

Replace damaged or missing clips with new ones.

Information

• Make sure that the retaining lugs are not bent or broken.
• Replace the trim panel if the retaining lugs are damaged.

1. Install front side section trim panel.

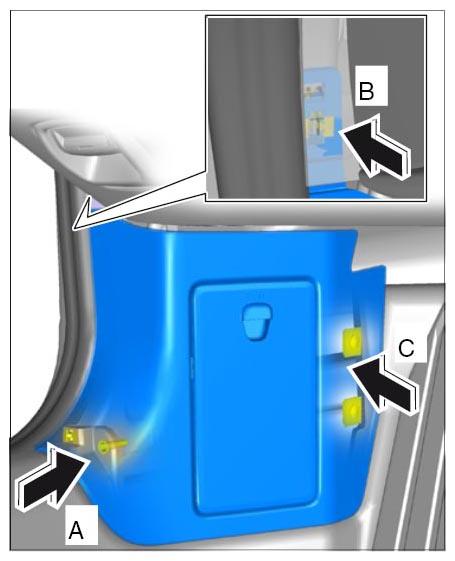

   Fig 1: Installing Front Side Section Trim

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
   1. 1.1. Guide the trim panel into the side member support using the guide pin -arrow A-  .
   2. 1.2. Press the trim panel into the A-pillar until the fastening clamps engage -arrow B-  .
   3. 1.3. Press on the front trim panel at the Velcro fasteners -arrow C-  .
2. Press in trim panel for the A-pillar -arrow-  until the fastening clamps engage.

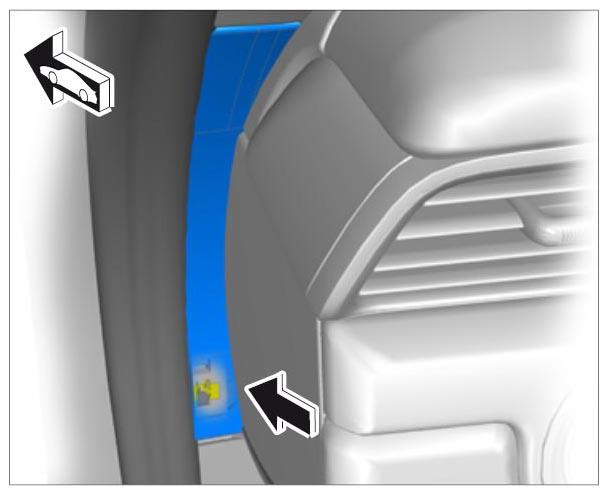

   Fig 2: Installing A-Pillar Trim Panel

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
3. Align rubber seal for the door using a plastic wedge.
