Removing Cover (Cold Air Bulkhead)

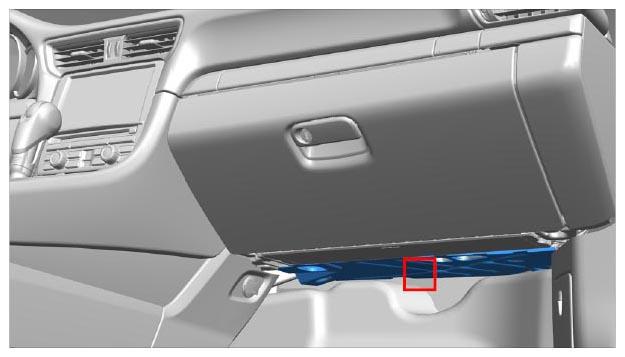

Fig 1: Identifying Cover Installation Position (Cold Air Bulkhead)
G09997890Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Remove cover (cold air bulkhead).

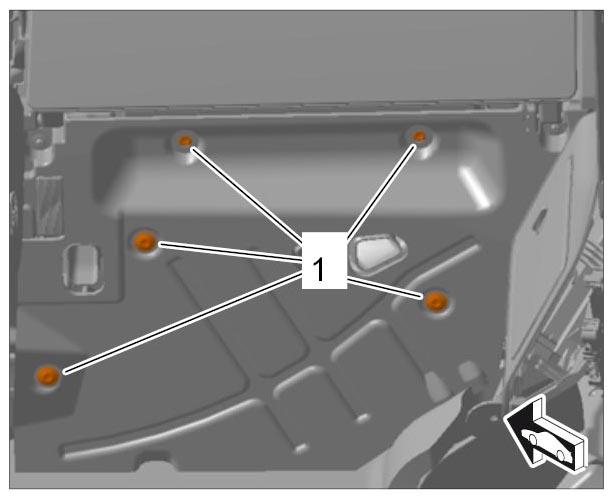

    Fig 2: Identifying Cover Fixing Clips (Cold Air Bulkhead)
    G09997891Courtesy of PORSCHE CARS NORTH AMERICA, INC.
    1. 1.1. Remove the five fixing clips -1-  .
    2. 1.2. Remove cover (cold air bulkhead).
