Installing Cover (Cold Air Bulkhead)

  1. Install cover (cold air bulkhead).

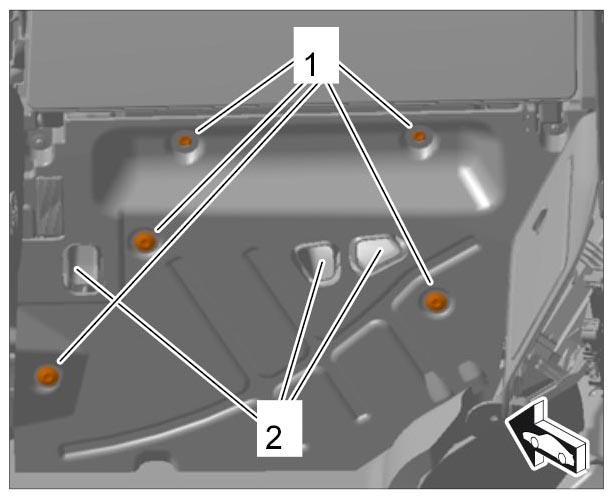

    Fig 1: Identifying Cover Clips (Cold Air Bulkhead)
    G09997892Courtesy of PORSCHE CARS NORTH AMERICA, INC.
    1. 1.1. Fit cover (cold air bulkhead).

      Make sure that the cover (cold air bulkhead) is not covering the air outlets -2-  .

    2. 1.2. Secure the cover (cold air bulkhead) by pressing in the five fixing clips -1-  .
