Removing Dashboard

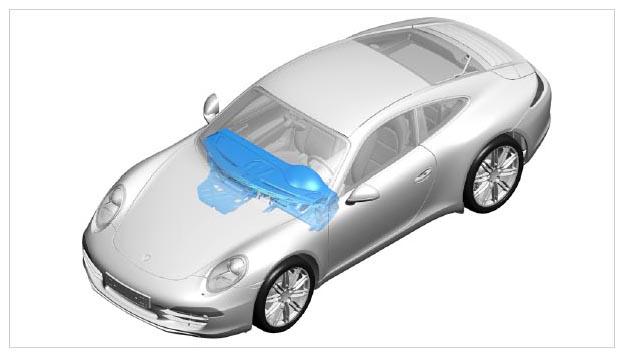

Fig 1: Identifying Dashboard Installation Position

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

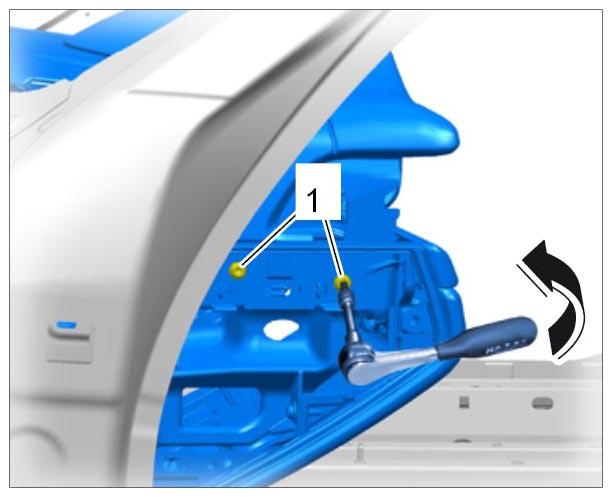

Side mounting.
1. 1.1. Unscrew fastening screws -1- at the left and right.

  Fig 2: Removing Side Mounting Fastening Screws
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

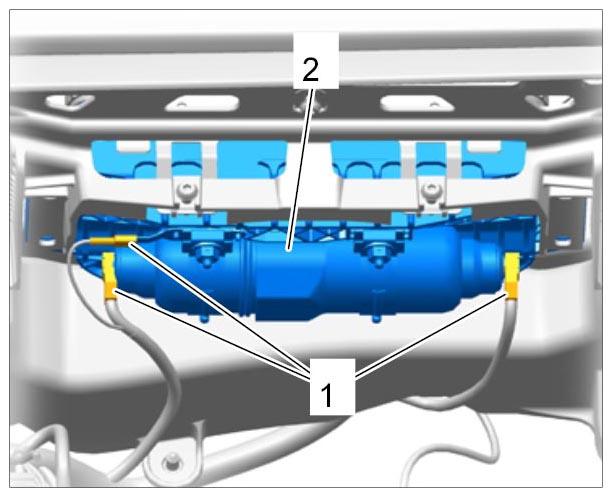

Plug connection for airbag.
1. 2.1. Disconnect plug connections -1- on the passenger's airbag -2- .

  Fig 3: Identifying Plug Connection For Airbag
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

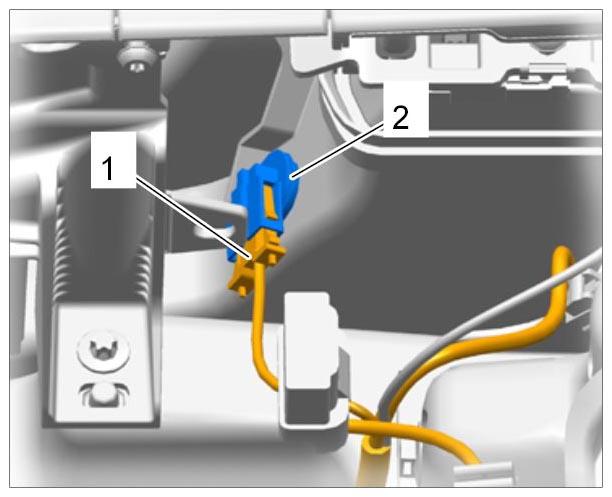

Plug connection for temperature sensor.
1. 3.1. Disconnect plug connection for temperature sensor for the air guide at the left and right.

  Fig 4: Identifying Plug Connection For Temperature Sensor
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

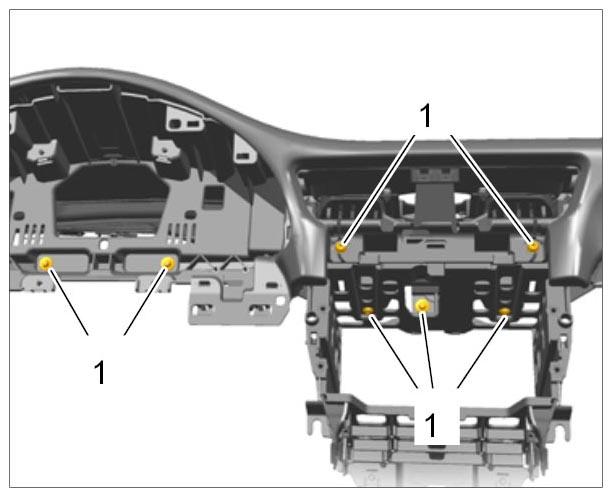

Fastening screws for dashboard.
1. 4.1. Unscrew fastening screws for the dashboard.

  Fig 5: Identifying Fastening Screws For Dashboard
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

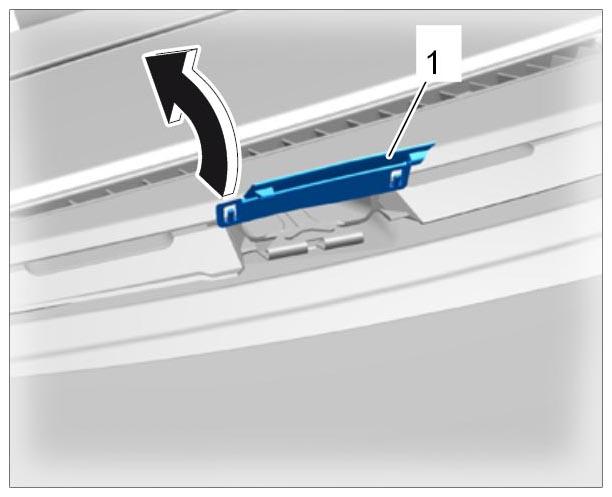

Open cover -1- on defroster duct.

Fig 6: Removing Cover On Defroster Duct
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information
- When removing the dashboard, make sure that no wires or plug connections are damaged.
Carefully take the dashboard off the dashboard bracket and remove it to the rear.
