Removing Dashboard Cover At The Side

Information

Some of the repair illustrations show only one side of the vehicle. Naturally, some steps also have to be performed on the opposite side of the vehicle as well. These must be carried out as a mirror image of the steps shown.

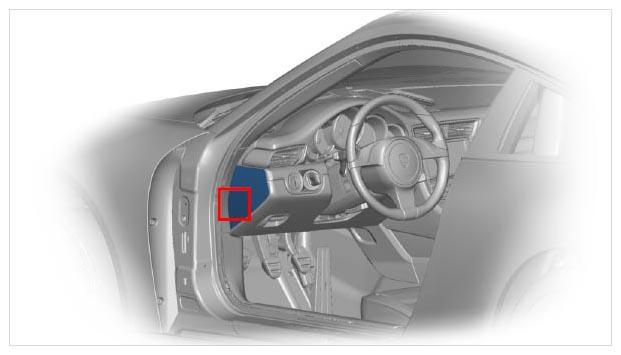

Fig 1: Identifying Dashboard Cover Installation Position

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

1. Unclip dashboard cover and remove it by pulling it to the rear -arrow-  .

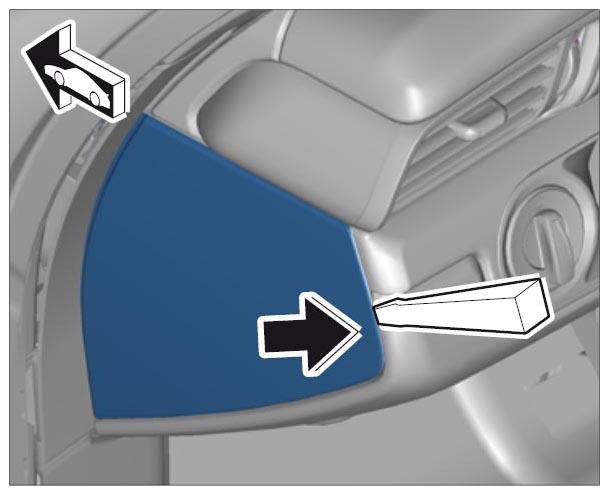

   Fig 2: Removing Dashboard Cover

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
